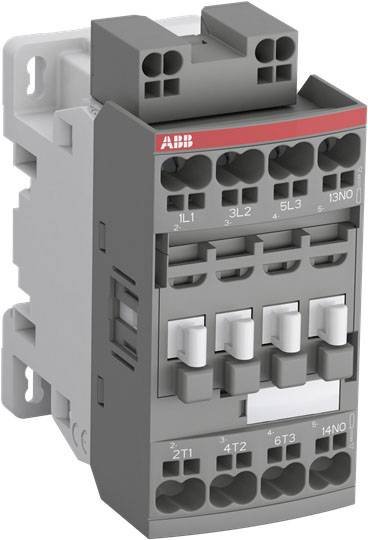

ABB AF09-30-10K-13 Switch 4 makers, 1 maker 100 V 25 A + surge protection Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
3-pin
Nominal voltage
100 V
Current load
25 A
Connection
Spring-loaded connector
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
AF09-30-10K-13
- No. of pins
3-pin
- Contact type
4 makers
1 maker
- Auxiliary contact type
1 maker
- Nominal voltage
100 V
- Control voltage (min.)
20 V DC
- Control voltage (max.)
500 V AC
- Control voltage range
20 - 500 V AC
- Permanent current (max.)
25 A
- Current load
25 A
- Features
+ surge protection
- Connection
Spring-loaded connector
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2317573 ABB AF09-30-10K-13 Switch 4 makers, 1 maker 100 V 25 A + surge protection Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2317573 ABB AF09-30-10K-13 Switch 4 makers, 1 maker 100 V 25 A + surge protection Piece 1 pc(s)
Description
The 3-pin AF09 contactors represent the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have an integrated surge protection and do not require any additional extinguishing elements. All integrated or retrofitted NC auxiliary contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timing elements, wiring aids and locking links, among others, complement the product range.
