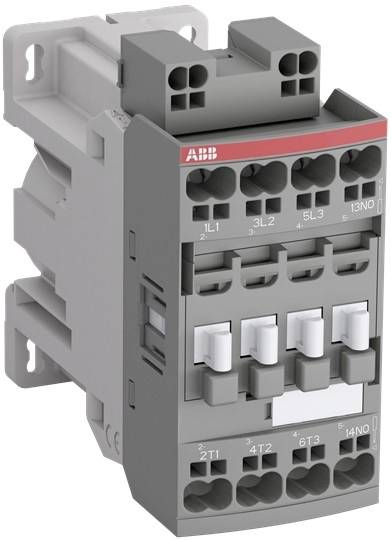

ABB AF09Z-30-01K-30 Contactor 3 makers 1.7 W + surge protection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Power
1.7 W
Connection
Spring-loaded connector
Type
AF09Z-30-01K-30
Technical specifications
- Product type
Contactor
- Type
AF09Z-30-01K-30
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
- Switching voltage (min.)
690 V DC
- Switching voltage (max.)
690 V DC
1.7 W
- Features
+ surge protection
- Mounting type
Spring-loaded connector
- Connection
Spring-loaded connector
- Width
45 mm
- Height
92.3 mm
- Depth
97 mm
- Dim
(W x H x D) 45 x 92.3 x 97 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3784527 ABB AF09Z-30-01K-30 Contactor 3 makers 1.7 W + surge protection 1 pc(s)
Information
Information 3784527 ABB AF09Z-30-01K-30 Contactor 3 makers 1.7 W + surge protection 1 pc(s)
Description
The AF09Z 3-pole contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. They have an electronic coil interface for 24 V DC with built-in surge protection and do not need any additional extinguishing elements. The contactors with coil code -30 enable direct control by =24V DC 250mA PLC outputs and require a very low holding power of only 1.7W. Only the AF..Z..-30 contactors must observe the polarity at the coil terminals (A1+ and A2-). AF09Z..K have push-in spring clips. A simple press is enough for an extremely fast wiring: Installed faster than ever before, wired in a simpler way than ever before, more reliable than ever before connected. All integrated or subsequently mounted auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Other accessories such as timers, wiring aids and locking links, etc. complete the range.
