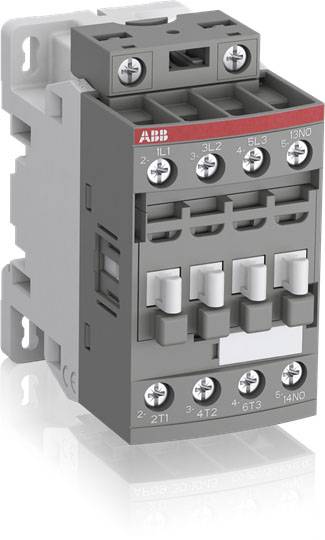

ABB AF09Z-30-10-20 Switch 1 maker, 4 makers 1.7 W 100 V 25 A + surge protection Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
3-pin
Nominal voltage
100 V
Current load
25 A
Power
1.7 W
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
AF09Z-30-10-20
- No. of pins
3-pin
- Contact type
1 maker
4 makers
- Nominal voltage
100 V
- Control voltage (min.)
24 V DC
- Control voltage range
24 V DC (min)
- Switching voltage (max.)
100 V DC/AC
- Permanent current (max.)
25 A
- Current load
25 A
1.7 W
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2323348 ABB AF09Z-30-10-20 Switch 1 maker, 4 makers 1.7 W 100 V 25 A + surge protection Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2323348 ABB AF09Z-30-10-20 Switch 1 maker, 4 makers 1.7 W 100 V 25 A + surge protection Piece 1 pc(s)
Description
The AF09Z 3-pole contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. They have an electronic coil interface that can realize a very wide control voltage. This also allows large control voltage fluctuations to be managed. The contactors with coil code -21 enable direct control through ≥24V DC 500mA PLC outputs and require a very low holding power of only 1.7W. AFZ contactors can withstand short voltage dips and voltage drops (according TO SEMI F47-0706). All integrated or retrofitted auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. They also have built-in surge protection and do not require any additional extinguishing elements. Other accessories such as timing elements, wiring aids and locking links, among others, complement the product range.
This text is machine translated.
