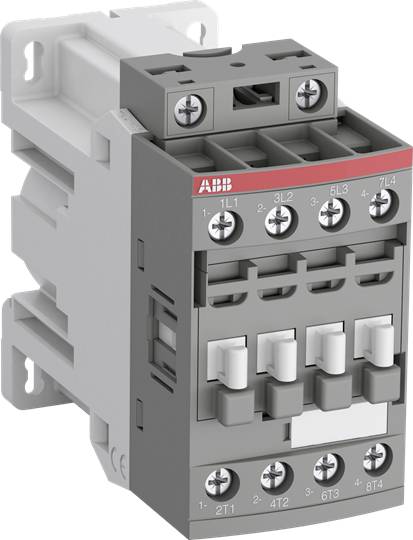

ABB AF09Z-40-00-30 Contactor 4 makers 4 kW + surge protection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
4-pin
Power
4 kW
Connection
Screws
Type
AF09Z-40-00-30
Datasheet (PDF)
Technical specifications
- Product type
Contactor
- Type
AF09Z-40-00-30
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
- Permanent current (max.)
25 A
4 kW
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
FALSE
4 kW
4
0
0
0
9 A
25 A
24-24 V
Screw connection
DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105188 ABB AF09Z-40-00-30 Contactor 4 makers 4 kW + surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105188 ABB AF09Z-40-00-30 Contactor 4 makers 4 kW + surge protection 1 pc(s)
Description
The 4-pin contactors AF09Z are used for controlling power circuits up to 690V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads. The contactors with coil code -30 have an electronic 24 V DC coil interface with built-in surge protection, whereby a reduced holding coil consumption of up to 1.7W and a direct control by the PLC output ≥ 250mA 24V DC, without additional interface relays, is achieved. The polarity at the coil terminals (A1 + and A2-) must be observed. Front and side mountable auxiliary contact blocks with positively guided auxiliary contacts according to Appendix L of IEC 60947-5-1 and NC mirror contacts according to Appendix F of IEC 60947-4-1 are available.
