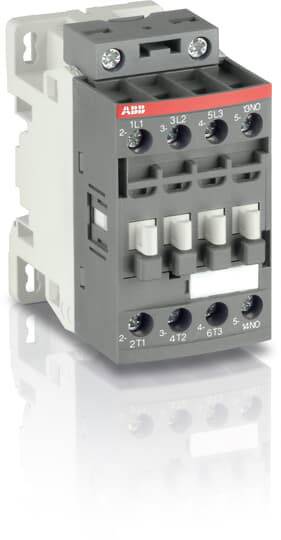

ABB AF09ZB-30-10-23 Switch 4 makers, 1 maker 100 V 9 A + surge protection Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
3-pin
Nominal voltage
100 V
Current load
9 A
Connection
Screws
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
AF09ZB-30-10-23
- No. of pins
3-pin
- Contact type
4 makers
1 maker
- Nominal voltage
100 V
- Switching voltage (max.)
4 V AC
- Permanent current (max.)
9 A
- Current load
9 A
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
45
86 mm
77 mm
FALSE
4 kW
3
0
1
0
9 A
25 A
100-250 V
100-250 V
100-250 V
Screw connection
690-690 V
690-690 V
DC
3.729
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318264 ABB AF09ZB-30-10-23 Switch 4 makers, 1 maker 100 V 9 A + surge protection Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2318264 ABB AF09ZB-30-10-23 Switch 4 makers, 1 maker 100 V 9 A + surge protection Piece 1 pc(s)
Description
The 3-pole AFZB contactors comply with the latest standards for rolling railway vehicles and enable them to be installed in passenger or driver's cabs of trains that frequently travel in tunnels or subways. They switch power circuits with motors, slightly inductive or non-inductive loads. They comply with all important standards for rolling stock: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 and applicable parts of the standards EN 50155, shock and vibration resistance according to IEC 61373 Cat. 1, class B. They also reach the highest levels of fire and smoke behavior while complying with European standard EN 45545-2 (HL2 hazard levels) for group assembly. The AFZB contactors can withstand short voltage dips and voltage drops (in accordance WITH SEMI F47-0706). All integrated or retrofitted auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. They also have built-in surge protection and do not require any additional extinguishing elements.
