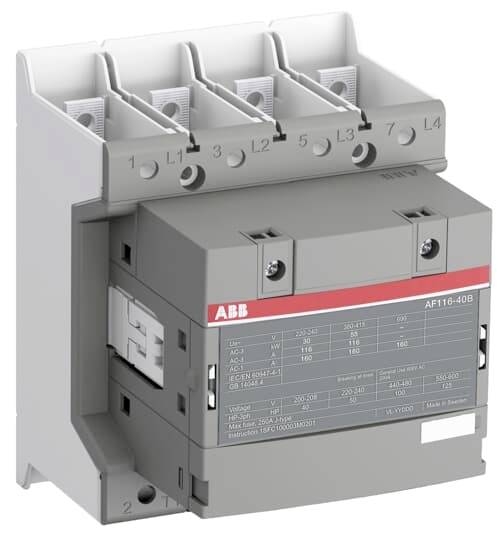

ABB AF116-40-00B-11 Contactor 4 makers 55 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
Power
55 kW
Connection
Screws
Type
AF116-40-00B-11
Contact type
4 makers
Datasheet (PDF)
Technical specifications
- Product type
Contactor
- Type
AF116-40-00B-11
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Control voltage (min.)
24 V AC
20 V DC
- Control voltage (max.)
60 V AC
60 V DC
- Control voltage range
24, 20 - 60, 60 V AC, V DC
- Permanent current (max.)
160 A
55 kW
- Connection
Screws
- Content
1 pc(s)
120
150 mm
128 mm
FALSE
55 kW
4
0
0
0
116 A
160 A
24-60 V
24-60 V
20-60 V
Screw connection
690-690 V
690-690 V
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3110896 ABB AF116-40-00B-11 Contactor 4 makers 55 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3110896 ABB AF116-40-00B-11 Contactor 4 makers 55 kW 1 pc(s)
Description
AF116 to AF750 contactors from 55 to 400 kW AC-3 (400 V) stand for the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without any additional deletion elements. This means they can be used worldwide and only in small variations. AF116 to AF370 are also available in direct PLC-controllable versions, as of AF400 a PLC input is available as standard. AF contactors switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are up to 2 right and left-sided mounted 2-pole auxiliary switches. All auxiliary NC contacts are implemented as mirror contacts in accordance with IEC60947-5-1 attachment L. Other accessories such as terminal covers, wiring aids and locking links complete the range.
