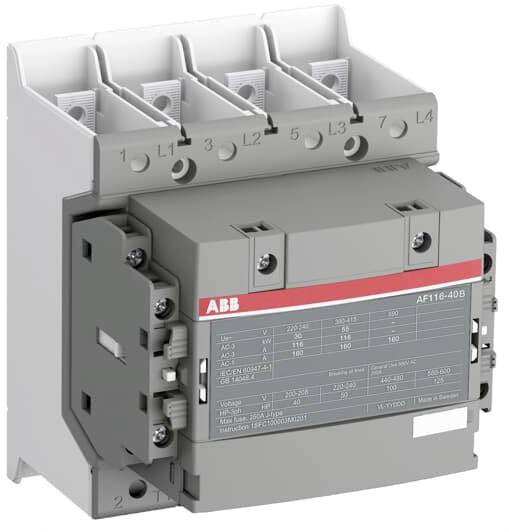

ABB AF116-40-22B-14 Switch 4 makers, 2 makers 400 kW 250 V 116 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
2-pin
Nominal voltage
250 V
Current load
116 A
Power
400 kW
Datasheet (PDF)
Technical specifications
- Product type
Switch
- Type
AF116-40-22B-14
- No. of pins
2-pin
- Contact type
4 makers
2 makers
- Auxiliary contact type
2 makers
- Nominal voltage
250 V
- Control voltage (min.)
20 V DC
- Control voltage (max.)
500 V AC
- Control voltage range
20 - 500 V AC
- Switching voltage (max.)
55 V AC
- Permanent current (max.)
116 A
- Current load
116 A
400 kW
- Content
1 pc(s)
120
150 mm
128 mm
FALSE
55 kW
4
0
2
2
116 A
160 A
250-500 V
250-500 V
250-500 V
Screw connection
690-690 V
690-690 V
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2323904 ABB AF116-40-22B-14 Switch 4 makers, 2 makers 400 kW 250 V 116 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2323904 ABB AF116-40-22B-14 Switch 4 makers, 2 makers 400 kW 250 V 116 A 1 pc(s)
Description
AF116 to AF750 contactors from 55 to 400 kW AC-3 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional required extinguishing elements. This means that they can be used worldwide and only in small variations. AF116 to AF370 are also available in versions that can be controlled directly from the PLC, as of AF400, a PLC input is available as standard. AF contactors switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are up to 2 2 2-pole auxiliary switches mounted on the right and left side. All auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as terminal covers, wiring aids and locking links, among others, complement the range.
This text is machine translated.
This text is machine translated.
