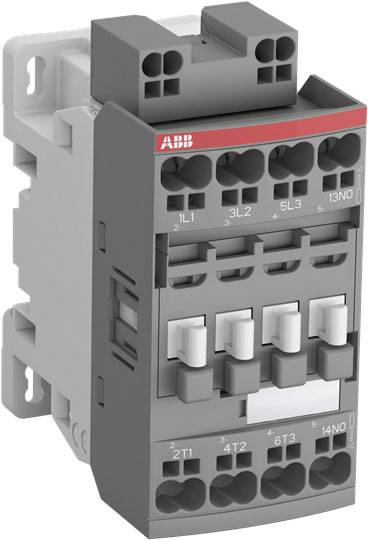

ABB AF12-30-01K-13 Switch 4 makers, 1 maker 100 V 28 A + surge protection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
3-pin
Nominal voltage
100 V
Current load
28 A
Connection
Spring-loaded connector
Datasheet (PDF)
Technical specifications
- Product type
Switch
- Type
AF12-30-01K-13
- No. of pins
3-pin
- Contact type
4 makers
1 maker
- Auxiliary contact type
4 makers
- Nominal voltage
100 V
- Control voltage (min.)
20 V DC
- Control voltage (max.)
500 V DC
- Control voltage range
20 - 500 V DC
- Permanent current (max.)
28 A
- Current load
28 A
- Features
+ surge protection
- Connection
Spring-loaded connector
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324435 ABB AF12-30-01K-13 Switch 4 makers, 1 maker 100 V 28 A + surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2324435 ABB AF12-30-01K-13 Switch 4 makers, 1 maker 100 V 28 A + surge protection 1 pc(s)
Description
The 3-pin AF12 contactors represent the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have an integrated surge protection and do not require any additional extinguishing elements. All integrated or retrofitted NC auxiliary contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timing elements, wiring aids and locking links, among others, complement the product range.
