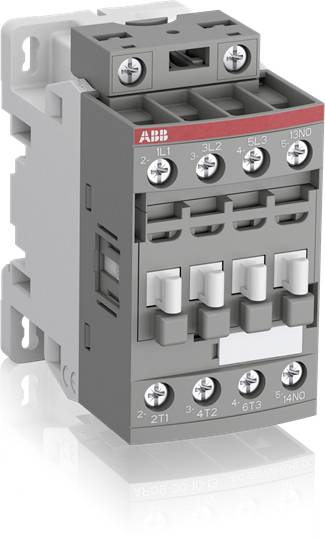

ABB AF12-30-10-11 Contactor 4 makers 5.5 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
Power
5.5 kW
Connection
Screws
Type
AF12-30-10-11
Contact type
4 makers
Datasheet (PDF)
Technical specifications
- Product type
Contactor
- Type
AF12-30-10-11
- Contact type
4 makers
- Control voltage (max.)
24 V AC
20 V DC
- Control voltage range
24, 20 V AC, V DC (max)
- Permanent current (max.)
28 A
5.5 kW
- Connection
Screws
- Content
1 pc(s)
45
86 mm
77 mm
FALSE
5.5 kW
3
0
1
0
12 A
28 A
24-60 V
24-60 V
20-60 V
Screw connection
690-690 V
690-690 V
AC/DC
3.729
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105235 ABB AF12-30-10-11 Contactor 4 makers 5.5 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105235 ABB AF12-30-10-11 Contactor 4 makers 5.5 kW 1 pc(s)
Description
The 3-pin AF12 contactors are for the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have a built-in surge protector and do not require any additional quenching circuits. All integrated NC auxiliary contacts that can be installed later are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Other accessories such as timers, wiring aids and locking links, etc. complete the range. Contactors with coil code -11 are not suitable for connection to 24 V DC PLC outputs.
