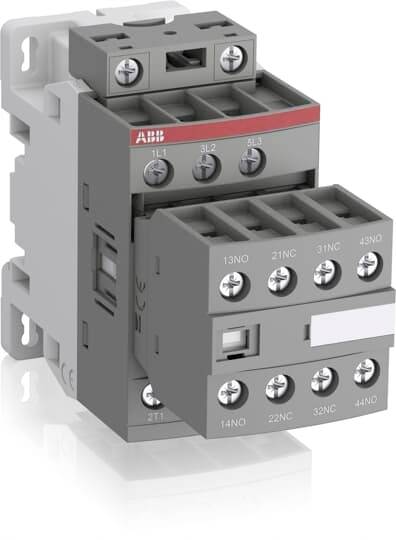

ABB AF12-30-22-13 Contactor 5 makers, 2 breakers 5.5 kW + surge protection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Power
5.5 kW
Connection
Screws
Type
AF12-30-22-13
Datasheet (PDF)
Technical specifications
- Product type
Contactor
- Type
AF12-30-22-13
- No. of pins
3-pin
- Contact type
5 makers
2 breakers
- Auxiliary contact type
5 makers
- Control voltage (min.)
20 V DC
- Control voltage (max.)
100 V AC
100 V DC
- Control voltage range
20 - 100, 100 V AC, V DC
- Permanent current (max.)
28 A
5.5 kW
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
45
86 mm
110.5 mm
FALSE
5.5 kW
3
0
2
2
12 A
28 A
100-250 V
100-250 V
100-250 V
Screw connection
690-690 V
690-690 V
AC/DC
3.729
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105237 ABB AF12-30-22-13 Contactor 5 makers, 2 breakers 5.5 kW + surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105237 ABB AF12-30-22-13 Contactor 5 makers, 2 breakers 5.5 kW + surge protection 1 pc(s)
Description
The 3-pin AF12 contactors are for the compact series with AC/DC control and very wide coil voltage ranges. They switch power circuits with motors, slightly inductive or non-inductive loads. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC. They have a built-in surge protector and do not require any additional quenching circuits. All integrated NC auxiliary contacts that can be installed later are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Other accessories such as timers, wiring aids and locking links, etc. complete the range.
This text is machine translated.
This text is machine translated.
