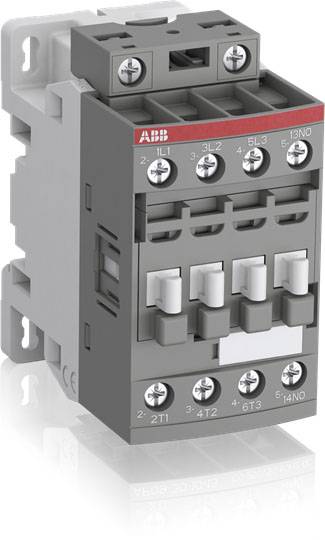

ABB AF12Z-30-10-21 Switch 4 makers, 1 maker 1.7 W 24 V 28 A + surge protection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
3-pin
Nominal voltage
24 V
Current load
28 A
Power
1.7 W
Datasheet (PDF)
Technical specifications
- Product type
Switch
- Type
AF12Z-30-10-21
- No. of pins
3-pin
- Contact type
4 makers
1 maker
- Auxiliary contact type
4 makers
- Nominal voltage
24 V
- Control voltage (min.)
24 V DC
- Control voltage range
24 V DC (min)
- Permanent current (max.)
28 A
- Current load
28 A
1.7 W
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
45
86 mm
77 mm
FALSE
5.5 kW
3
0
1
0
12 A
28 A
24-60 V
24-60 V
20-60 V
Screw connection
690-690 V
690-690 V
AC/DC
3.729
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2320895 ABB AF12Z-30-10-21 Switch 4 makers, 1 maker 1.7 W 24 V 28 A + surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2320895 ABB AF12Z-30-10-21 Switch 4 makers, 1 maker 1.7 W 24 V 28 A + surge protection 1 pc(s)
Description
The AF12Z 3-pole contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. They have an electronic coil interface that can realize a very wide control voltage. This also allows large control voltage fluctuations to be managed. The contactors with coil code -21 enable direct control through ≥24V DC 500mA PLC outputs and require a very low holding power of only 1.7W. AFZ contactors can withstand short voltage dips and voltage drops (according TO SEMI F47-0706). All integrated or retrofitted auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. They also have built-in surge protection and do not require any additional extinguishing elements. Other accessories such as timing elements, wiring aids and locking links, among others, complement the product range.
