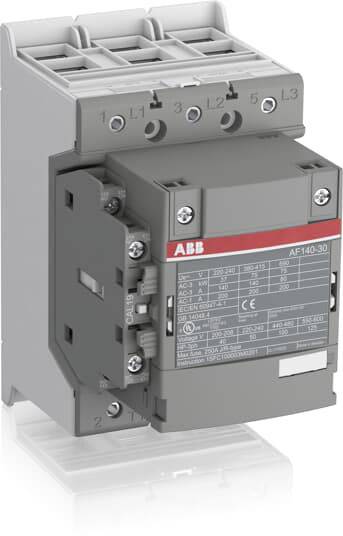

ABB AF140-30-11-11 Switch 1 maker, 4 makers 400000 W 24 V 140 A + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
2-pin
Nominal voltage
24 V
Current load
140 A
Power
400000 W
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
AF140-30-11-11
- No. of pins
2-pin
- Contact type
1 maker
4 makers
- Nominal voltage
24 V
- Control voltage (min.)
24 V AC
- Control voltage (max.)
500 V AC
- Control voltage range
24 - 500 V AC
- Switching voltage (max.)
75 V AC
- Max. switching capacity
400000 W
- Permanent current (max.)
140 A
- Current load
140 A
400000 W
- Features
+ auxiliary contact
- Connection
Clamp
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2321286 ABB AF140-30-11-11 Switch 1 maker, 4 makers 400000 W 24 V 140 A + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2321286 ABB AF140-30-11-11 Switch 1 maker, 4 makers 400000 W 24 V 140 A + auxiliary contact Piece 1 pc(s)
Description
AF116 to AF750 contactors from 55 to 400 kW AC-3 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional required extinguishing elements. This means that they can be used worldwide and only in small variations. AF116 to AF370 are also available in versions that can be controlled directly from the PLC, as of AF400, a PLC input is available as standard. AF contactors switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are up to 2 2 2-pole auxiliary switches mounted on the right and left side. All auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as terminal covers, wiring aids and locking links, among others, complement the range.
