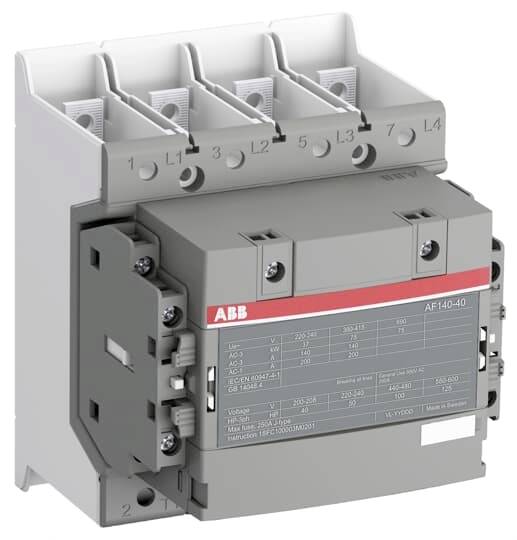

ABB AF140-40-22B-14 Contactor 6 makers, 2 breakers 75 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
Power
75 kW
Connection
Screws
Type
AF140-40-22B-14
Contact type
6 makers
2 breakers
Datasheet (PDF)
Technical specifications
- Product type
Contactor
- Type
AF140-40-22B-14
- Contact type
6 makers
2 breakers
- Auxiliary contact type
2 breakers
- Control voltage (min.)
250 V AC
250 V DC
- Control voltage (max.)
500 V AC
500 V DC
- Control voltage range
250, 250 - 500, 500 V AC, V DC
- Permanent current (max.)
200 A
75 kW
- Connection
Screws
- Content
1 pc(s)
120
150 mm
128 mm
FALSE
75 kW
4
0
2
2
140 A
200 A
250-500 V
250-500 V
250-500 V
Screw connection
690-690 V
690-690 V
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3110935 ABB AF140-40-22B-14 Contactor 6 makers, 2 breakers 75 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3110935 ABB AF140-40-22B-14 Contactor 6 makers, 2 breakers 75 kW 1 pc(s)
Description
AF116 to AF750 contactors from 55 to 400 kW AC-3 (400 V) stand for the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without any additional deletion elements. This means they can be used worldwide and only in small variations. AF116 to AF370 are also available in direct PLC-controllable versions, as of AF400 a PLC input is available as standard. AF contactors switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are up to 2 right and left-sided mounted 2-pole auxiliary switches. All auxiliary NC contacts are implemented as mirror contacts in accordance with IEC60947-5-1 attachment L. Other accessories such as terminal covers, wiring aids and locking links complete the range.
