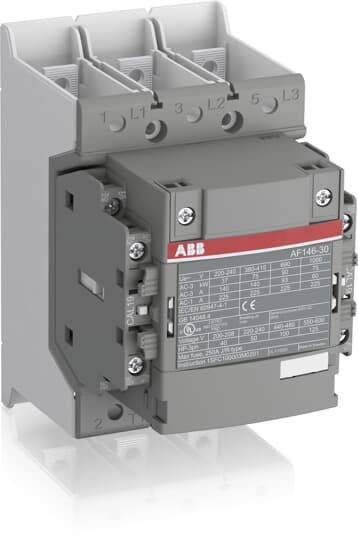

ABB AF146B-30-22-12 Switch 4 makers, 2 makers 200 kW 48 V 146 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
Nominal voltage
48 V
Current load
146 A
Power
200 kW
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
AF146B-30-22-12
- Contact type
4 makers
2 makers
- Auxiliary contact type
2 makers
- Nominal voltage
48 V
- Switching voltage (max.)
75 V AC
- Permanent current (max.)
146 A
- Current load
146 A
200 kW
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319041 ABB AF146B-30-22-12 Switch 4 makers, 2 makers 200 kW 48 V 146 A Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2319041 ABB AF146B-30-22-12 Switch 4 makers, 2 makers 200 kW 48 V 146 A Piece 1 pc(s)
Description
AF116 to AF370 contactors from 55 to 200 kW AC-3 (400 V) switch power circuits with motors, slightly inductive or non-inductive loads according to IEC/EN 60947-4-1 or IEC/EN 60947-5-1. They represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional required extinguishing elements. Alternatively, versions with integrated 24VDC interface relays are available, which can be controlled directly from the PLC. Mountable accessories are up to 2 2 2-pole auxiliary switches mounted on the right and left side. All auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-4-1 Appendix F. Wiring bridges and locking links are available as additional accessories.
