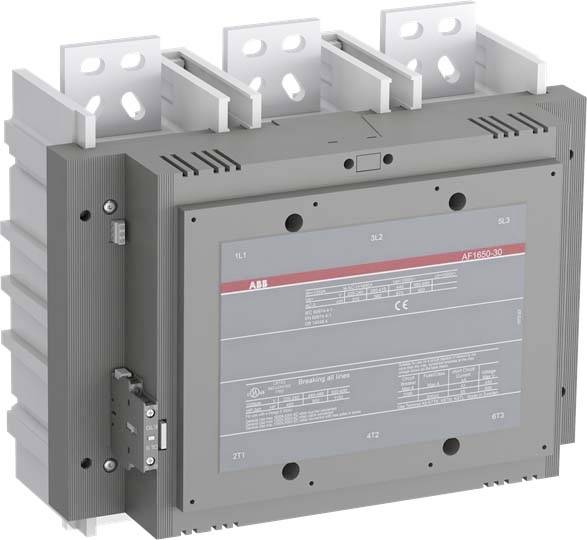

ABB AF1650-30-11-70 Contactor 3 makers 560 kW 1060 A + auxiliary contact 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
2-pin
Current load
1060 A
Power
560 kW
Type
AF1650-30-11-70
Technical specifications
- Product type
Contactor
- Type
AF1650-30-11-70
- No. of pins
2-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
1 breaker
- Control voltage (min.)
100 V AC
100 V DC
- Control voltage (max.)
250 V AC
250 V DC
- Control voltage range
100, 100 - 250, 250 V AC, V DC
- Switching voltage (min.)
20 V DC
- Switching voltage (max.)
500 V DC/AC
- Permanent current (max.)
1060 A
- Current load
1060 A
560 kW
- Features
+ auxiliary contact
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783334 ABB AF1650-30-11-70 Contactor 3 makers 560 kW 1060 A + auxiliary contact 1 pc(s)
Description
AF1250 to AF2650 contactors ranging from 1260 to 2650 A AC-1 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without any additional deletion elements. In addition, the contactors have a 24 VDC input and are therefore controlled directly from a PLC. This means they can be used worldwide and in only a small variety. These contactors are mostly used in AC-1 power circuits in wind and solar technology. Mountable accessories are up to 2 right and left-sided mounted 2-pole auxiliary switches. The auxiliary contact contacts connected in series with two auxiliary switches mounted on the right and left act as mirror contacts in accordance with IEC60947-5-1 Annex L. Other accessories such as terminal covers, wiring aids and locking elements, etc. complement the product range.
