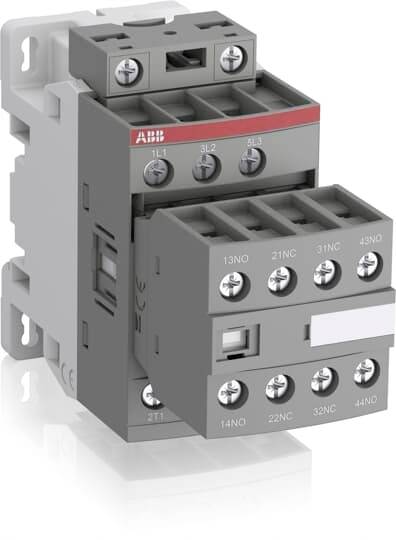

ABB AF16Z-30-22-23 Contactor 3 makers 7.5 kW 18 A + surge protection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Current load
18 A
Power
7.5 kW
Connection
Screws
Technical specifications
- Product type
Contactor
- Type
AF16Z-30-22-23
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
2 makers
2 breakers
- Control voltage (min.)
100 V AC
100 V DC
- Control voltage (max.)
250 V AC
250 V DC
- Control voltage range
100, 100 - 250, 250 V AC, V DC
- Switching voltage (min.)
690 V AC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
18 A
- Current load
18 A
7.5 kW
- Features
+ surge protection
- Connection
Screws
- Width
45 mm
- Height
86 mm
- Depth
110.5 mm
- Dim
(W x H x D) 45 x 86 x 110.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3786893 ABB AF16Z-30-22-23 Contactor 3 makers 7.5 kW 18 A + surge protection 1 pc(s)
Description
The AF16Z 3-pole contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. They have an electronic coil interface that can implement a very broad control voltage. This can also cope with large control voltage fluctuations. AFZ contactors can withstand short voltage drops and voltage drops (according to SEMI F47-0706). All integrated or retrofitted auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Furthermore, they have a built-in surge protector and do not require any additional quenching elements. Other accessories such as timers, wiring aids and locking links, etc. complete the range.
