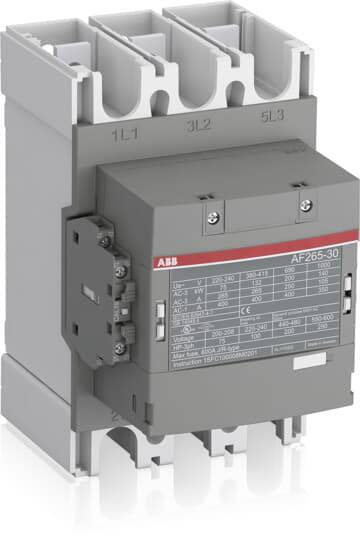

ABB AF265-30-11-13 Switch 4 makers, 1 maker 100 V 265 A + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
2-pin
Nominal voltage
100 V
Current load
265 A
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
AF265-30-11-13
- No. of pins
2-pin
- Contact type
4 makers
1 maker
- Auxiliary contact type
1 maker
- Nominal voltage
100 V
- Switching voltage (max.)
132 V AC
- Permanent current (max.)
265 A
- Current load
265 A
- Features
+ auxiliary contact
- Content
1 pc(s)
140
225 mm
180 mm
FALSE
132 kW
3
0
1
1
265 A
400 A
100-250 V
100-250 V
100-250 V
Rail connection
1000-1000 V
1000-1000 V
AC/DC
74.57
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319864 ABB AF265-30-11-13 Switch 4 makers, 1 maker 100 V 265 A + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2319864 ABB AF265-30-11-13 Switch 4 makers, 1 maker 100 V 265 A + auxiliary contact Piece 1 pc(s)
Description
AF116 to AF750 contactors from 55 to 400 kW AC-3 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional required extinguishing elements. This means that they can be used worldwide and only in small variations. AF116 to AF370 are also available in versions that can be controlled directly from the PLC, as of AF400, a PLC input is available as standard. AF contactors switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are up to 2 2 2-pole auxiliary switches mounted on the right and left side. All auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as terminal covers, wiring aids and locking links, among others, complement the range.
