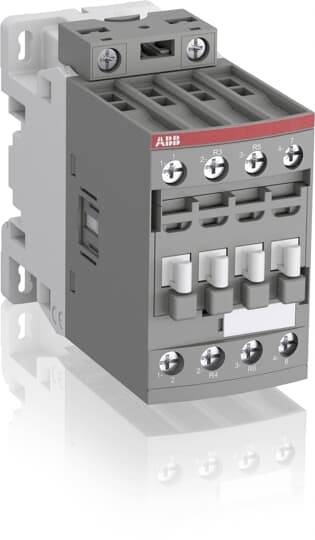

ABB AF26Z-22-00-23 Contactor 2 makers, 2 breakers 11 kW + surge protection Single 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
4-pin
Power
11 kW
Connection
Screws
Packaging type
Single
Datasheet (PDF)
Technical specifications
- Packaging type
Single
- Product type
Contactor
- Type
AF26Z-22-00-23
- No. of pins
4-pin
- Contact type
2 makers
2 breakers
- Control voltage (max.)
100 V AC
100 V DC
- Control voltage range
100, 100 V AC, V DC (max)
- Permanent current (max.)
45 A
11 kW
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
FALSE
11 kW
2
2
0
0
22 A
45 A
100-100 V
100-100 V
100-100 V
Screw connection
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105352 ABB AF26Z-22-00-23 Contactor 2 makers, 2 breakers 11 kW + surge protection Single 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105352 ABB AF26Z-22-00-23 Contactor 2 makers, 2 breakers 11 kW + surge protection Single 1 pc(s)
Description
The AF26Z 4-pole contactors are designed for switching power circuits with slightly inductive or non-inductive loads. They have an electronic coil interface that can implement a very broad control voltage. This can also cope with large control voltage fluctuations. AFZ contactors can withstand short voltage drops and voltage drops (according to SEMI F47-0706). All subsequently mountable NC auxiliary contacts are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Furthermore, they have a built-in surge protector and do not require any additional quenching elements. Other accessories such as timers, wiring aids and locking links, etc. complete the range.
