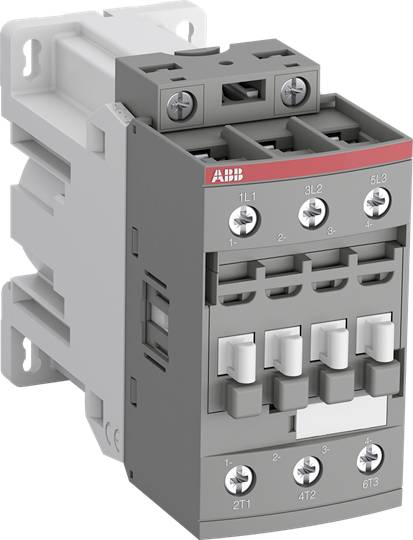

ABB AF26Z-30-00-30 Contactor 3 makers 11 kW + surge protection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Power
11 kW
Connection
Screws
Type
AF26Z-30-00-30
Datasheet (PDF)
Technical specifications
- Product type
Contactor
- Type
AF26Z-30-00-30
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Permanent current (max.)
45 A
11 kW
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
FALSE
11 kW
3
0
0
0
26 A
45 A
24-24 V
Screw connection
DC
7.457 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105343 ABB AF26Z-30-00-30 Contactor 3 makers 11 kW + surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105343 ABB AF26Z-30-00-30 Contactor 3 makers 11 kW + surge protection 1 pc(s)
Description
The AF26Z 3-pole contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. They have an electronic coil interface that can implement a very broad control voltage. This can also cope with large control voltage fluctuations. The contactors with coil code -30 enable direct control by ≥24V DC 250mA PLC outputs and require a very low holding power of only 1.7W. AFZ contactors can withstand short voltage drops and voltage drops (according to SEMI F47-0706). All subsequently mountable auxiliary NC contacts are implemented as mirror contacts in accordance with IEC60947-5-1 Annex L. Furthermore, they have a built-in surge protector and do not require any additional quenching elements. Other accessories such as timers, wiring aids and locking links, etc. complete the range.
