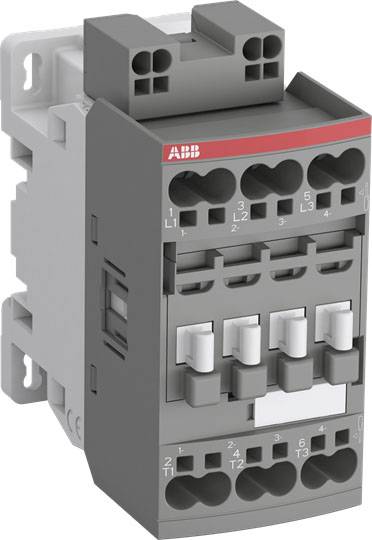

ABB AF26Z-30-00K-21 Switch 4 makers 1.7 W 24 V 26 A + surge protection Single 1 pc(s)

The AF26Z 3-pole contactors are designed for switching power circuits with motors, slightly inductive or non-inductive loads. They have an electronic coil interface that can realize a very wide control voltage. This also allows large control voltage fluctuations to be managed. The contactors with coil code -21 enable direct control through ≥24V DC 500mA PLC outputs and require a very low holding power of only 1.7W. AFZ contactors can withstand short voltage dips and voltage drops (according TO SEMI F47-0706). All auxiliary NC contacts that can be retrofitted are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. They also have built-in surge protection and do not require any additional extinguishing elements. Other accessories such as timing elements, wiring aids and locking links, among others, complement the product range.

This text is machine translated.
