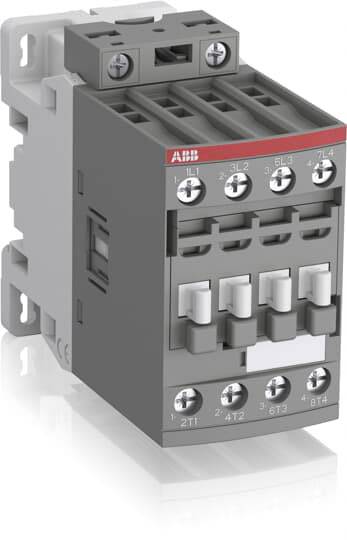

ABB AF26Z-40-00-20 Switch 4 makers 45 kW 100 V 45 A + auxiliary contact 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
4-pin
Nominal voltage
100 V
Current load
45 A
Power
45 kW
Datasheet (PDF)
Technical specifications
- Product type
Switch
- Type
AF26Z-40-00-20
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
1 maker
- Nominal voltage
100 V
- Control voltage (min.)
20 V DC
- Control voltage (max.)
500 V DC
- Control voltage range
20 - 500 V DC
- Switching voltage (max.)
11 V AC
- Permanent current (max.)
45 A
- Current load
45 A
45 kW
- Features
+ auxiliary contact
- Connection
Screws
- Content
1 pc(s)
45
86 mm
101 mm
FALSE
11 kW
4
0
0
0
26 A
45 A
12-20 V
12-20 V
12-20 V
Screw connection
690-690 V
690-690 V
DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2321567 ABB AF26Z-40-00-20 Switch 4 makers 45 kW 100 V 45 A + auxiliary contact 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2321567 ABB AF26Z-40-00-20 Switch 4 makers 45 kW 100 V 45 A + auxiliary contact 1 pc(s)
Description
AF09 to AF96 contactors from 4 to 45 kW AC-3 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional required extinguishing elements. This means that they can be used worldwide and only in small variations. They switch power circuits with motors, slightly inductive or non-inductive loads. Flexibly changeable coil connection terminals allow the connection from above, from below or from above and below. Mountable accessories are 1- and 4-pole auxiliary switches that can be plugged on the front side as well as 2-pole auxiliary switches that can be mounted on the right and left side. Up to AF65, an additional auxiliary switch block with 1S+1NC and coil connections A1 and A2 is available for the coil connection on the front. All auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timing elements, wiring aids and locking links, among others, complement the product range.
This text is machine translated.
