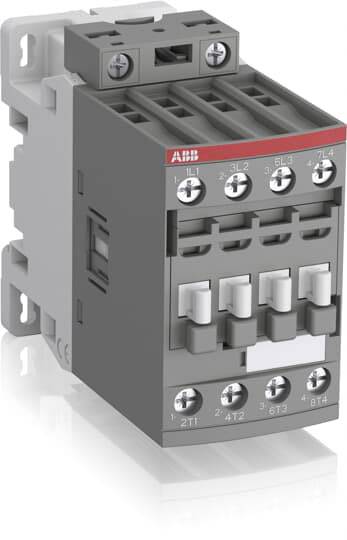

ABB AF38-40-00-13 Switch 4 makers 11000 W 100 V 55 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
4-pin
Nominal voltage
100 V
Current load
55 A
Power
11000 W
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
AF38-40-00-13
- No. of pins
4-pin
- Contact type
4 makers
- Nominal voltage
100 V
- Control voltage (min.)
100 V AC
- Control voltage (max.)
250 V AC
- Control voltage range
100 - 250 V AC
- Switching voltage (max.)
11 V AC
- Max. switching capacity
11000 W
- Permanent current (max.)
55 A
- Current load
55 A
11000 W
- Connection
Screws
- Width
45 mm
- Height
86 mm
- Depth
101 mm
- Dim
(W x H x D) 45 x 86 x 101 mm
- Content
1 pc(s)
45
86 mm
101 mm
FALSE
18.5 kW
4
0
0
0
38 A
50 A
100-250 V
100-250 V
100-250 V
Screw connection
690-690 V
690-690 V
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324441 ABB AF38-40-00-13 Switch 4 makers 11000 W 100 V 55 A Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2324441 ABB AF38-40-00-13 Switch 4 makers 11000 W 100 V 55 A Piece 1 pc(s)
Description
AF09 to AF96 contactors from 4 to 45 kW AC-3 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional required extinguishing elements. This means that they can be used worldwide and only in small variations. They switch power circuits with motors, slightly inductive or non-inductive loads. Flexibly changeable coil connection terminals allow the connection from above, from below or from above and below. Mountable accessories are 1- and 4-pole auxiliary switches that can be plugged on the front side as well as 2-pole auxiliary switches that can be mounted on the right and left side. Up to AF65, an additional auxiliary switch block with 1S+1NC and coil connections A1 and A2 is available for the coil connection on the front. All auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timing elements, wiring aids and locking links, among others, complement the product range.
