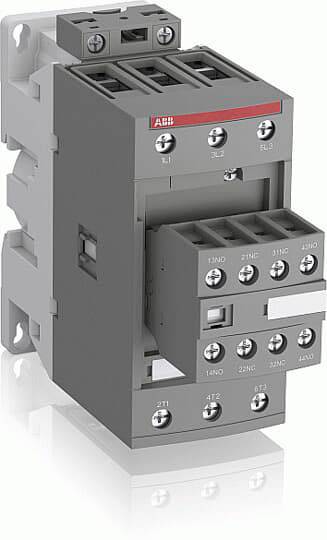

ABB AF40-30-22-13 Switch 4 makers, 2 makers 18642.5 W 100 V 40 A pluggable Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
3-pin
Nominal voltage
100 V
Current load
40 A
Power
18642.5 W
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
AF40-30-22-13
- No. of pins
3-pin
- Contact type
4 makers
2 makers
- Auxiliary contact type
2 makers
- Nominal voltage
100 V
- Control voltage (min.)
100 V AC
- Control voltage (max.)
250 V AC
- Control voltage range
100 - 250 V AC
- Switching voltage (max.)
690 V AC
- Max. switching capacity
18642.5 W
- Permanent current (max.)
70 A
- Current load
40 A
18642.5 W
- Features
pluggable
- Connection
Screws
- Width
55 mm
- Height
125.5 mm
- Depth
144 mm
- Dim
(W x H x D) 55 x 125.5 x 144 mm
- Content
1 pc(s)
55
125.5 mm
144 mm
FALSE
18.5 kW
3
0
2
2
40 A
70 A
100-250 V
100-250 V
100-250 V
Screw connection
690-690 V
690-690 V
AC/DC
18.643
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318950 ABB AF40-30-22-13 Switch 4 makers, 2 makers 18642.5 W 100 V 40 A pluggable Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2318950 ABB AF40-30-22-13 Switch 4 makers, 2 makers 18642.5 W 100 V 40 A pluggable Piece 1 pc(s)
Description
AF09 to AF96 contactors from 4 to 45 kW AC-3 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional required extinguishing elements. This means that they can be used worldwide and only in small variations. They switch power circuits with motors, slightly inductive or non-inductive loads. Flexibly changeable coil connection terminals allow the connection from above, from below or from above and below. Mountable accessories are 1- and 4-pole auxiliary switches that can be plugged on the front side as well as 2-pole auxiliary switches that can be mounted on the right and left side. Up to AF65, an additional auxiliary switch block with 1S+1NC and coil connections A1 and A2 is available for the coil connection on the front. All auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timing elements, wiring aids and locking links, among others, complement the product range.
