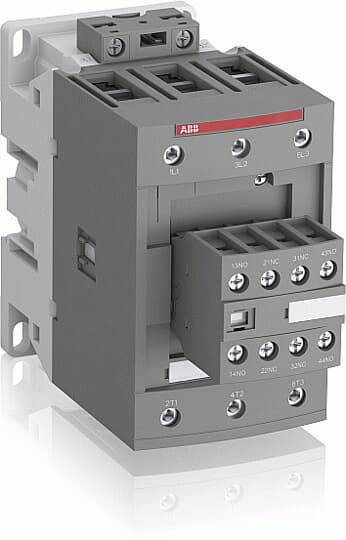

ABB AF96-30-22-13 Switch 2 makers, 4 makers 45 kW 100 V 130 A + auxiliary contact 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
Nominal voltage
100 V
Current load
130 A
Power
45 kW
Connection
Screws
Datasheet (PDF)
Technical specifications
- Product type
Switch
- Type
AF96-30-22-13
- Contact type
2 makers
4 makers
- Auxiliary contact type
2 makers
- Nominal voltage
100 V
- Switching voltage (max.)
45 V AC
- Permanent current (max.)
130 A
- Current load
130 A
45 kW
- Features
+ auxiliary contact
- Connection
Screws
- Content
1 pc(s)
70
125.5 mm
149 mm
FALSE
45 kW
3
0
2
2
96 A
130 A
100-250 V
100-250 V
100-250 V
Screw connection
690-1000 V
690-1000 V
AC/DC
55.928
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319465 ABB AF96-30-22-13 Switch 2 makers, 4 makers 45 kW 100 V 130 A + auxiliary contact 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2319465 ABB AF96-30-22-13 Switch 2 makers, 4 makers 45 kW 100 V 130 A + auxiliary contact 1 pc(s)
Description
AF09 to AF96 contactors from 4 to 45 kW AC-3 (400 V) represent the compact series with AC/DC control and very wide coil voltage ranges. Only 4 coils cover control voltages from 20...500 VDC to 24...500 VAC - without additional required extinguishing elements. This means that they can be used worldwide and only in small variations. They switch power circuits with motors, slightly inductive or non-inductive loads. Flexibly changeable coil connection terminals allow the connection from above, from below or from above and below. Mountable accessories are 1- and 4-pole auxiliary switches that can be plugged on the front side as well as 2-pole auxiliary switches that can be mounted on the right and left side. Up to AF65, an additional auxiliary switch block with 1S+1NC and coil connections A1 and A2 is available for the coil connection on the front. All auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Other accessories such as timing elements, wiring aids and locking links, among others, complement the product range.
