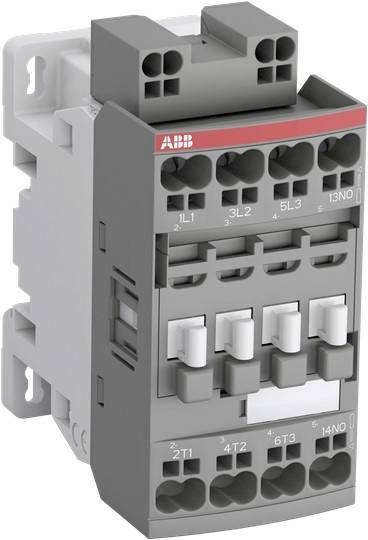

ABB AFC09-30-10K-85 Contactor 3 makers 4 kW 9 A + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Current load
9 A
Power
4 kW
Connection
Spring-loaded connector
Technical specifications
- Packaging type
Piece
- Product type
Contactor
- Type
AFC09-30-10K-85
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
380 V AC
- Control voltage (max.)
400 V AC
- Control voltage range
380 - 400 V AC
- Switching voltage (min.)
690 V AC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
25 A
- Current load
9 A
4 kW
- Features
+ auxiliary contact
- Connection
Spring-loaded connector
- Width
45 mm
- Height
92.3 mm
- Depth
77 mm
- Dim
(W x H x D) 45 x 92.3 x 77 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783300 ABB AFC09-30-10K-85 Contactor 3 makers 4 kW 9 A + auxiliary contact Piece 1 pc(s)
Description
The AFC09-30-10K-85 is a 3-pole - 690 V IEC or 600 V UL - contactor with 1S built-in auxiliary contact and push-in terminals, Mainly for controlling circuits up to 4 kW / 400 V AC (AC-3) or 5 HP / 480 V AC UL and 25 A (AC-1) or 25 A UL for general use. Within the AF platform, the AFC contactors offer an optimized operating time for AC-controlled applications with electromagnetic coil (control voltage: 380 400V AC 50Hz / 400 415V AC 60Hz). AFC contactors are designed in block construction and can be easily extended with additional auxiliary contact blocks and a wide range of additional accessories.
This text is machine translated.
This text is machine translated.
