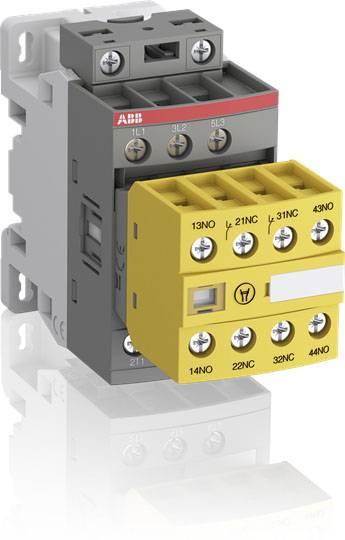

ABB AFS09-30-22-13 Switch 4 makers, 2 makers 100 V 25 A + surge protection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
3-pin
Nominal voltage
100 V
Current load
25 A
Connection
Screws
Datasheet (PDF)
Technical specifications
- Product type
Switch
- Type
AFS09-30-22-13
- No. of pins
3-pin
- Contact type
4 makers
2 makers
- Auxiliary contact type
4 makers
- Nominal voltage
100 V
- Switching voltage (max.)
4 V AC
- Permanent current (max.)
25 A
- Current load
25 A
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318760 ABB AFS09-30-22-13 Switch 4 makers, 2 makers 100 V 25 A + surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2318760 ABB AFS09-30-22-13 Switch 4 makers, 2 makers 100 V 25 A + surge protection 1 pc(s)
Description
The 3-pole AFS contactors are designed for machine safety applications. They are supplied with fixed color coded auxiliary contact blocks on the front panel, ideal for monitoring and controlling power circuits with motors, light inductive or non-inductive loads. The integrated auxiliary contacts are positively driven and designed as mirror contacts according to IEC60947-5-1 Appendix L. They also have built-in surge protection and do not require any additional extinguishing elements. Minimum switching capacity of the auxiliary contacts 12V / 3mA, with a failure rate 10-7 according to IEC 60947-5-4.
