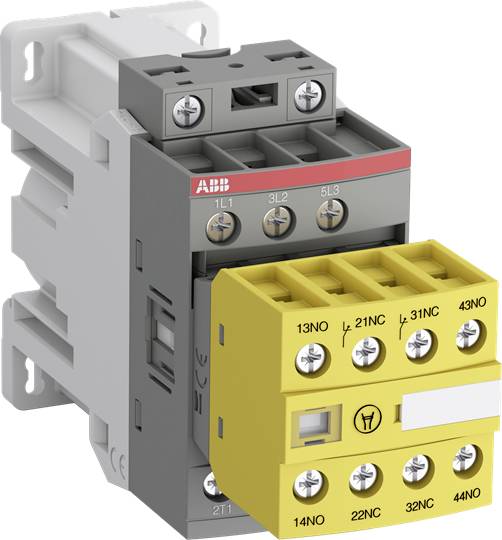

ABB AFS09Z-30-22-30 Contactor 5 makers, 2 breakers 4 kW + surge protection Piece 1 pc(s)

The 3-pole contactors AFS..Z are designed for applications in machine safety. They are supplied with fixed color-coded auxiliary contact blocks on the front and are therefore suitable Ideal for monitoring and controlling power circuits with motors, slightly inductive or non-inductive loads. The contactors enable direct control by ≥24V DC 250mA PLC outputs with a very low holding power of only 1.7W. The integrated auxiliary contacts are positively driven and are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Furthermore, they have a built-in surge protector and do not require any additional quenching elements. Minimum switching capacity of the auxiliary contacts 12V / 3mA, with a failure rate 10-7 in accordance with IEC 60947-5-4.
