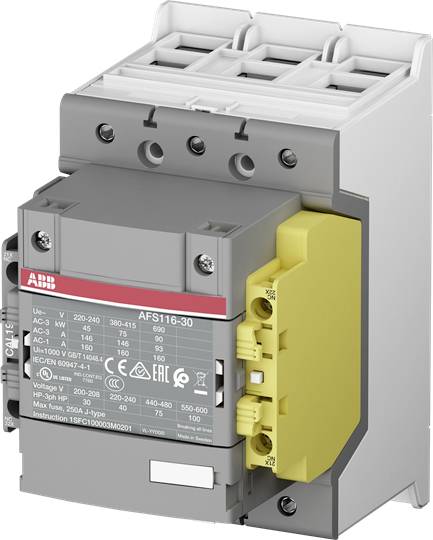

ABB AFS116-30-12-11 Contactor 4 makers, 2 breakers 55 kW + surge protection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Power
55 kW
Connection
Screws
Type
AFS116-30-12-11
Datasheet (PDF)
Technical specifications
- Product type
Contactor
- Type
AFS116-30-12-11
- No. of pins
3-pin
- Contact type
4 makers
2 breakers
- Auxiliary contact type
4 makers
- Control voltage (min.)
24 V AC
20 V DC
- Control voltage (max.)
60 V AC
60 V DC
- Control voltage range
24, 20 - 60, 60 V AC, V DC
- Permanent current (max.)
160 A
55 kW
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
FALSE
55 kW
3
0
1
2
116 A
160 A
24-60 V
24-60 V
20-60 V
Screw connection
AC/DC
29.828 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3110881 ABB AFS116-30-12-11 Contactor 4 makers, 2 breakers 55 kW + surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3110881 ABB AFS116-30-12-11 Contactor 4 makers, 2 breakers 55 kW + surge protection 1 pc(s)
Description
The AFS series 3-pole contactors are designed for machine safety applications. They are supplied with a fixed mounted, color-coded, side auxiliary contact block and are therefore suitable for Ideal for monitoring and controlling power circuits with motors, slightly inductive or non-inductive loads. The integrated auxiliary contacts are positively driven and are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Furthermore, they have a built-in surge protector and do not require any additional quenching elements. Minimum switching capacity of the auxiliary contacts 12V / 3mA, with a failure rate 10-7 in accordance with IEC 60947-5-4.
