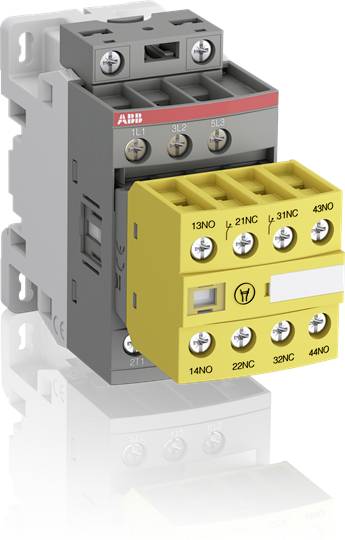

ABB AFS16-30-22-13 Contactor 5 makers, 2 breakers 7.5 kW + surge protection Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Power
7.5 kW
Connection
Screws
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Contactor
- Type
AFS16-30-22-13
- No. of pins
3-pin
- Contact type
5 makers
2 breakers
- Auxiliary contact type
5 makers
- Control voltage (max.)
100 V AC
100 V DC
- Control voltage range
100, 100 V AC, V DC (max)
- Permanent current (max.)
30 A
7.5 kW
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
FALSE
7.5 kW
3
0
2
2
18 A
30 A
100-100 V
100-100 V
100-100 V
Screw connection
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105302 ABB AFS16-30-22-13 Contactor 5 makers, 2 breakers 7.5 kW + surge protection Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105302 ABB AFS16-30-22-13 Contactor 5 makers, 2 breakers 7.5 kW + surge protection Piece 1 pc(s)
Description
The AFS 3-pole contactors are designed for applications in machine safety. They are supplied with fixed color-coded auxiliary contact blocks on the front and are therefore suitable Ideal for monitoring and controlling power circuits with motors, slightly inductive or non-inductive loads. The integrated auxiliary contacts are positively driven and are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Furthermore, they have a built-in surge protector and do not require any additional quenching elements. Minimum switching capacity of the auxiliary contacts 12V / 3mA, with a failure rate 10-7 in accordance with IEC 60947-5-4.
