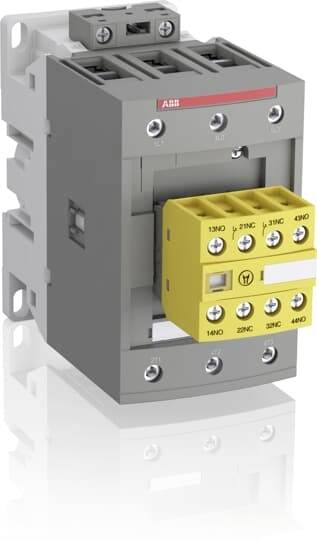

ABB AFS80-30-22-11 Contactor 5 makers, 2 breakers 37 kW + surge protection Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Power
37 kW
Connection
Screws
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Contactor
- Type
AFS80-30-22-11
- No. of pins
3-pin
- Contact type
5 makers
2 breakers
- Auxiliary contact type
5 makers
- Control voltage (max.)
24 V AC
20 V DC
- Control voltage range
24, 20 V AC, V DC (max)
- Permanent current (max.)
125 A
37 kW
- Features
+ surge protection
- Connection
Screws
- Content
1 pc(s)
FALSE
37 kW
3
0
2
2
80 A
125 A
24-24 V
24-24 V
20-20 V
Screw connection
AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105519 ABB AFS80-30-22-11 Contactor 5 makers, 2 breakers 37 kW + surge protection Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105519 ABB AFS80-30-22-11 Contactor 5 makers, 2 breakers 37 kW + surge protection Piece 1 pc(s)
Description
The AFS 3-pole contactors are designed for applications in machine safety. They are supplied with fixed color-coded auxiliary contact blocks on the front and are therefore suitable Ideal for monitoring and controlling power circuits with motors, slightly inductive or non-inductive loads. The integrated auxiliary contacts are positively driven and are designed as mirror contacts in accordance with IEC60947-5-1 Annex L. Furthermore, they have a built-in surge protector and do not require any additional quenching elements. Minimum switching capacity of the auxiliary contacts 12V / 3mA, with a failure rate 10-7 in accordance with IEC 60947-5-4. AFS contactors with coil code -11 are not suitable for control by a 24V DC PLC output.
