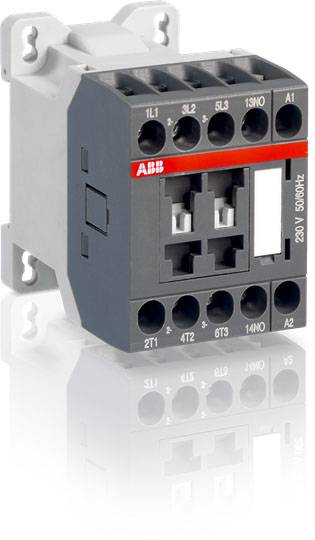

ABB AS09-30-10-26 Switch 4 makers, 1 maker 230 V 9 A + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
1-pin
Nominal voltage
230 V
Current load
9 A
Connection
Screws
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
AS09-30-10-26
- No. of pins
1-pin
- Contact type
4 makers
1 maker
- Auxiliary contact type
1 breaker
- Nominal voltage
230 V
- Permanent current (max.)
9 A
- Current load
9 A
- Features
+ auxiliary contact
- Connection
Screws
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319611 ABB AS09-30-10-26 Switch 4 makers, 1 maker 230 V 9 A + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2319611 ABB AS09-30-10-26 Switch 4 makers, 1 maker 230 V 9 A + auxiliary contact Piece 1 pc(s)
Description
As/ASL 09 to AS/ASL 16 contactors from 4 to 7.5 kW AC-3 (400 V) represent the very compact series with AC or DC control. They switch power circuits with motors, light inductive or non-inductive loads and have 3 main contacts and 1 or 5 auxiliary contacts. Accessories that can be attached are laterally insertable extinguishing links as well as 1-pole auxiliary switches that can be plugged on the front side. All auxiliary NC contacts are designed as mirror contacts in accordance with IEC60947-5-1 Appendix L. Further accessories such as timers for on and off-delay, wiring aids and locking links, among others, complement the product range.
