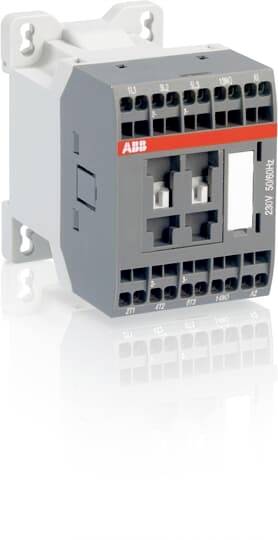

ABB AS12-30-10S-26 Contactor 3 makers 5.5 kW 12 A + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Current load
12 A
Power
5.5 kW
Connection
Spring-loaded connector
Technical specifications
- Packaging type
Piece
- Product type
Contactor
- Type
AS12-30-10S-26
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
230 V AC
230 V DC
- Control voltage (max.)
230 V AC
230 V DC
- Control voltage range
230, 230 - 230, 230 V AC, V DC
- Switching voltage (min.)
690 V AC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
12 A
- Current load
12 A
5.5 kW
- Features
+ auxiliary contact
- Connection
Spring-loaded connector
- Width
45 mm
- Height
68 mm
- Depth
72.5 mm
- Dim
(W x H x D) 45 x 68 x 72.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3786889 ABB AS12-30-10S-26 Contactor 3 makers 5.5 kW 12 A + auxiliary contact Piece 1 pc(s)
Description
AS/ASL 09 to AS/ASL 16 contactors from 4 to 7.5 kW AC-3 (400 V) stand for the very compact series with AC or DC control. It switches power circuits with motors, slightly inductive or non-inductive loads and have 3 main contact contacts as well as 1 or 5 auxiliary contacts. Mountable accessories are laterally insertable fire-extinguishers as well as 1- pin, plug-in auxiliary switch on the front. All auxiliary NC contacts are implemented as mirror contacts in accordance with IEC60947-5-1 attachment L. Other accessories such as time elements for on and off delay, wiring aids and locking links, among other things, complete the range.
