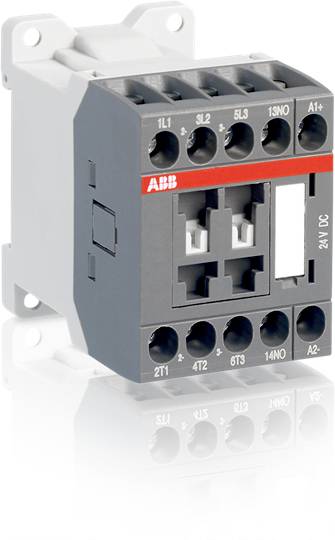

ABB ASL16-30-01-81 Contactor 3 makers, 1 breaker 7.5 kW Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
Power
7.5 kW
Connection
Screws
Packaging type
Piece
Type
ASL16-30-01-81
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Contactor
- Type
ASL16-30-01-81
- Contact type
3 makers
1 breaker
- Auxiliary contact type
3 makers
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
- Permanent current (max.)
24 A
7.5 kW
- Connection
Screws
- Content
1 pc(s)
FALSE
7.5 kW
3
0
0
1
15.5 A
24 A
24-24 V
Screw connection
DC
7.457 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105148 ABB ASL16-30-01-81 Contactor 3 makers, 1 breaker 7.5 kW Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105148 ABB ASL16-30-01-81 Contactor 3 makers, 1 breaker 7.5 kW Piece 1 pc(s)
Description
AS/ASL 09 to AS/ASL 16 contactors from 4 to 7.5 kW AC-3 (400 V) stand for the very compact series with AC or DC control. It switches power circuits with motors, slightly inductive or non-inductive loads and have 3 main contact contacts as well as 1 or 5 auxiliary contacts. Mountable accessories are laterally insertable fire-extinguishers as well as 1- pin, plug-in auxiliary switch on the front. All auxiliary NC contacts are implemented as mirror contacts in accordance with IEC60947-5-1 attachment L. Other accessories such as time elements for on and off delay, wiring aids and locking links, among other things, complete the range.
