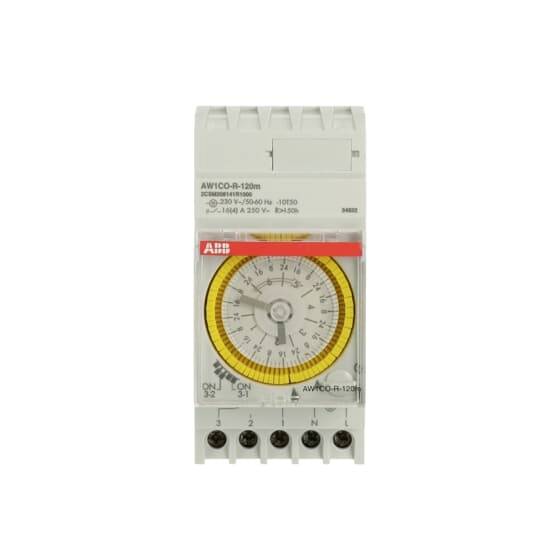

ABB AW1CO-R-120M Timer 230 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Timer
- Operating voltage
230 V AC
- Channels
1-channel
- Type
AW1CO-R-120M
- Manufacturer part #
2CSM208141R1000
- Dim
(L x W x H) 88 x 44 x 66 mm
- Min. power reserve
150 h
- Width
44 mm
- Height
66 mm
- Length
88 mm
DIN rail
44 mm
66 mm
88 mm
1
TRUE
FALSE
Change-over contact
2.5
FALSE
FALSE
TRUE
TRUE
FALSE
TRUE
TRUE
AC
TRUE
230-230 V
0
150
120 min
16 A
120 min
IP20
1 s
100 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103163 ABB AW1CO-R-120M Timer 230 V AC
User & Safety Instructions
User & Safety Instructions 3103163 ABB AW1CO-R-120M Timer 230 V AC
Description
The analogue timers are designed for DIN rail installation. You control
Opening and closing circuits in accordance with the schedule. You can
Programmed or set to the permanent ON/OFF function. The specifications
AD1NO-R-15m, AD1CO-R-15m, AW1CO-R-120m, AD1CO-R-30m, and AW1CO-R-210m are with
A built-in battery that is charged by the network voltage.
Thus the set time of the devices gets also in case of long (up to 150 hours) power failures
not deleted. The product is suitable for applications such as lighting in shops
Or commercial buildings, heating and ventilation systems and for the control of
Automatic irrigation systems in private gardens or public parks.
This text is machine translated.
Opening and closing circuits in accordance with the schedule. You can
Programmed or set to the permanent ON/OFF function. The specifications
AD1NO-R-15m, AD1CO-R-15m, AW1CO-R-120m, AD1CO-R-30m, and AW1CO-R-210m are with
A built-in battery that is charged by the network voltage.
Thus the set time of the devices gets also in case of long (up to 150 hours) power failures
not deleted. The product is suitable for applications such as lighting in shops
Or commercial buildings, heating and ventilation systems and for the control of
Automatic irrigation systems in private gardens or public parks.
This text is machine translated.
