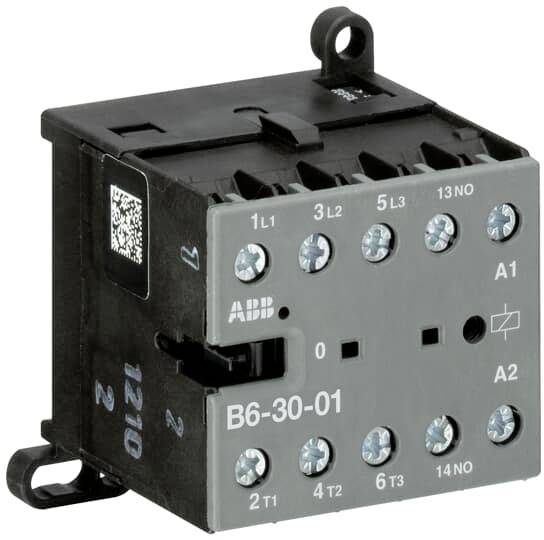

ABB B6-30-01-84 Switch 4 makers, 1 maker 110 V 8.5 A pluggable Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
2-pin
Nominal voltage
110 V
Current load
8.5 A
Connection
Screws
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
B6-30-01-84
- Type
6
- No. of pins
2-pin
- Contact type
4 makers
1 maker
- Auxiliary contact type
1 maker
- Nominal voltage
110 V
- Switching voltage (max.)
4 V AC
- Permanent current (max.)
8.5 A
- Current load
8.5 A
- Features
pluggable
- Connection
Screws
- Content
1 pc(s)
52.5
57.5 mm
46.7 mm
FALSE
4 kW
3
0
0
1
8 A
16 A
110-110 V
110-127 V
110-127 V
Screw connection
220-690 V
220-690 V
AC
1.491
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2330255 ABB B6-30-01-84 Switch 4 makers, 1 maker 110 V 8.5 A pluggable Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2330255 ABB B6-30-01-84 Switch 4 makers, 1 maker 110 V 8.5 A pluggable Piece 1 pc(s)
Description
Small contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result, a wide range of contact and coil variants offer a wide range of possible applications even under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are extinguishing links as well as 2-pole auxiliary switches that can be plugged on either side or front.
