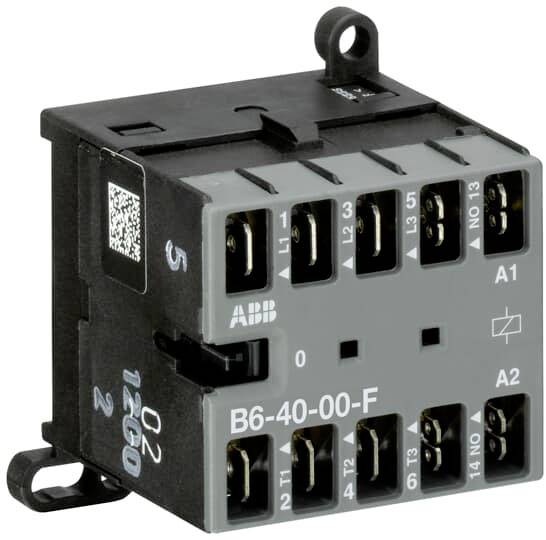

ABB B6-40-00-F-80 Switch 4 makers 4 kW 220 V 8.5 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
2-pin
Nominal voltage
220 V
Current load
8.5 A
Power
4 kW
Datasheet (PDF)
Technical specifications
- Product type
Switch
- Type
B6-40-00-F-80
- No. of pins
2-pin
- Contact type
4 makers
- Nominal voltage
220 V
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
- Switching voltage (min.)
220 V AC
- Switching voltage (max.)
4 V AC
- Permanent current (max.)
20 A
- Current load
8.5 A
4 kW
- Connection
Spring-loaded heavy duty connector
- Width
52.5 mm
- Height
57.5 mm
- Depth
46.7 mm
- Dim
(W x H x D) 52.5 x 57.5 x 46.7 mm
- Content
1 pc(s)
52.5
57.5 mm
46.7 mm
FALSE
4 kW
4
0
0
0
8 A
16 A
220-230 V
230-240 V
220-240 V
Flat plug-in connection
220-690 V
220-690 V
AC
1.491
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329331 ABB B6-40-00-F-80 Switch 4 makers 4 kW 220 V 8.5 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2329331 ABB B6-40-00-F-80 Switch 4 makers 4 kW 220 V 8.5 A 1 pc(s)
Description
Small contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result, a wide range of contact and coil variants offer a wide range of possible applications even under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are extinguishing links as well as 2-pole auxiliary switches that can be plugged on either side or front.
