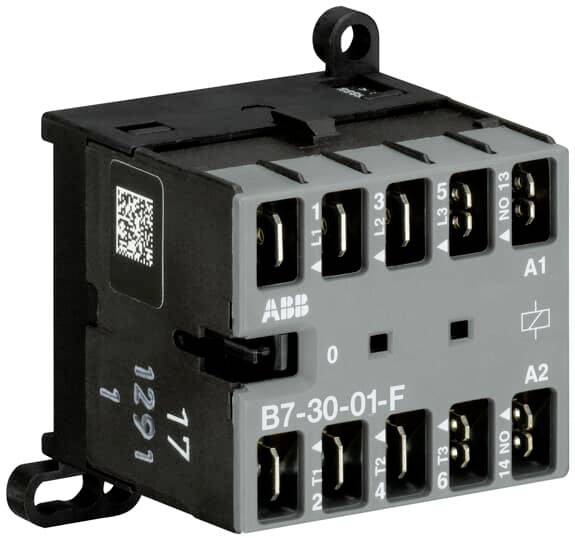

ABB B7-30-01-F-01 Switch 4 makers, 1 maker 24 V 11.5 A pluggable Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
2-pin
Nominal voltage
24 V
Current load
11.5 A
Connection
Spring-loaded heavy duty connector
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
B7-30-01-F-01
- No. of pins
2-pin
- Contact type
4 makers
1 maker
- Auxiliary contact type
4 makers
- Nominal voltage
24 V
- Switching voltage (max.)
5.5 V AC
- Permanent current (max.)
11.5 A
- Current load
11.5 A
- Features
pluggable
- Mounting type
Screw-fit
- Connection
Spring-loaded heavy duty connector
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327357 ABB B7-30-01-F-01 Switch 4 makers, 1 maker 24 V 11.5 A pluggable Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2327357 ABB B7-30-01-F-01 Switch 4 makers, 1 maker 24 V 11.5 A pluggable Piece 1 pc(s)
Description
Small contactors B/BC 6 and B/BC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result, a wide range of contact and coil variants offer a wide range of possible applications even under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Mountable accessories are extinguishing links as well as 2-pole auxiliary switches that can be plugged on either side or front.
This text is machine translated.
This text is machine translated.
