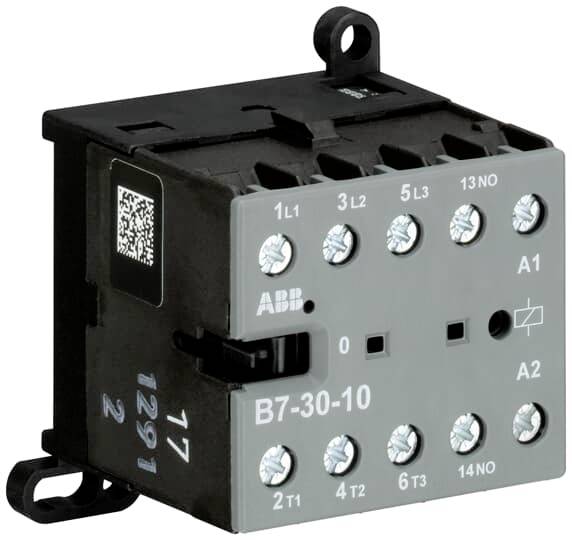

ABB B7-30-10-85 Contactor 3 makers 5.5 kW 12 A Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Current load
12 A
Power
5.5 kW
Connection
Screws
Technical specifications
- Packaging type
Piece
- Product type
Contactor
- Type
B7-30-10-85
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
380 V AC
380 V DC
- Control voltage (max.)
415 V AC
415 V DC
- Control voltage range
380, 380 - 415, 415 V AC, V DC
- Switching voltage (min.)
220 V AC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
12 A
- Current load
12 A
5.5 kW
- Connection
Screws
- Width
52.5 mm
- Height
57.5 mm
- Depth
46.7 mm
- Dim
(W x H x D) 52.5 x 57.5 x 46.7 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3787207 ABB B7-30-10-85 Contactor 3 makers 5.5 kW 12 A Piece 1 pc(s)
Description
Small contactors B/BC 6 and B/BC 7 from 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result and as a result of various contact and coil variants, a very broad range of application possibilities is offered also under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Expandable accessories are fire extinguishers and 2-pin auxiliary switches which can be attached on either side or front.
