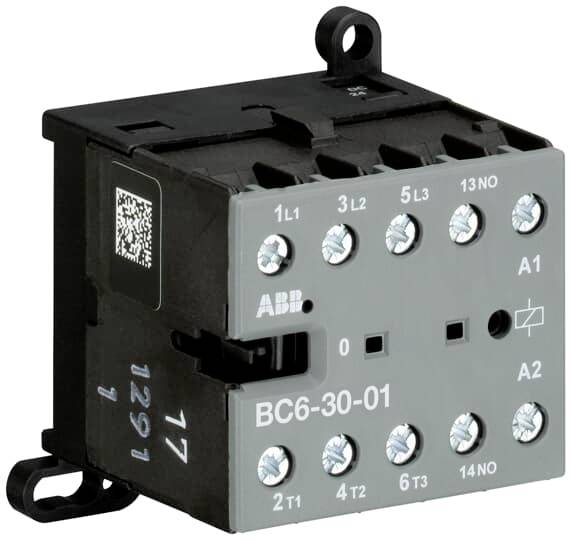

ABB BC6-30-01-01 Mini contactor 3 makers, 1 breaker 4 kW + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
Power
4 kW
Connection
Screws
Packaging type
Piece
Type
BC6-30-01-01
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Mini contactor
- Type
BC6-30-01-01
- Contact type
3 makers
1 breaker
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
- Switching voltage (max.)
400 V AC
- Permanent current (max.)
20 A
4 kW
- Features
+ auxiliary contact
- Connection
Screws
- Content
1 pc(s)
52.5
57.5 mm
46.7 mm
FALSE
4 kW
3
0
0
1
8 A
16 A
24-24 V
24-24 V
24-24 V
Screw connection
220-690 V
220-690 V
DC
1.491
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111639 ABB BC6-30-01-01 Mini contactor 3 makers, 1 breaker 4 kW + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111639 ABB BC6-30-01-01 Mini contactor 3 makers, 1 breaker 4 kW + auxiliary contact Piece 1 pc(s)
Description
Small contactors B/BC 6 and B/BC 7 from 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result and as a result of various contact and coil variants, a very broad range of application possibilities is offered also under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Expandable accessories are fire extinguishers and 2-pin auxiliary switches which can be attached on either side or front.
