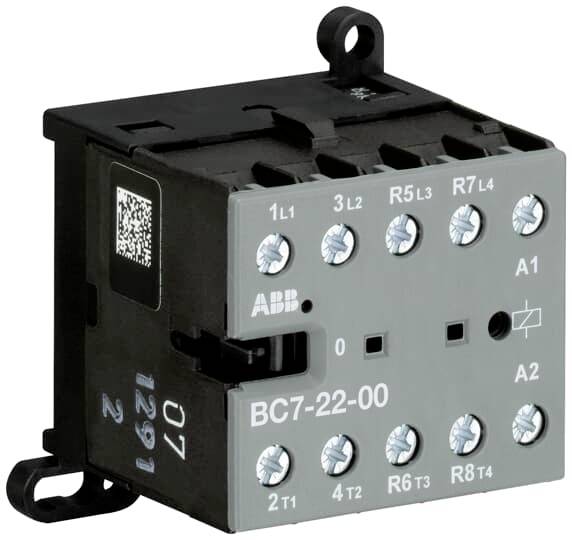

ABB BC7-22-00-01 Mini contactor 2 makers, 2 breakers 5.5 kW Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
Power
5.5 kW
Connection
Screws
Packaging type
Piece
Type
BC7-22-00-01
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Mini contactor
- Type
BC7-22-00-01
- Contact type
2 makers
2 breakers
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
- Permanent current (max.)
20 A
5.5 kW
- Connection
Screws
- Content
1 pc(s)
FALSE
5.5 kW
2
2
0
0
12 A
20 A
24-24 V
Screw connection
DC
2.2371 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111907 ABB BC7-22-00-01 Mini contactor 2 makers, 2 breakers 5.5 kW Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111907 ABB BC7-22-00-01 Mini contactor 2 makers, 2 breakers 5.5 kW Piece 1 pc(s)
Description
Small contactors B/BC 6 and B/BC 7 from 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result and as a result of various contact and coil variants, a very broad range of application possibilities is offered also under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Expandable accessories are fire extinguishers and 2-pin auxiliary switches which can be attached on either side or front.
