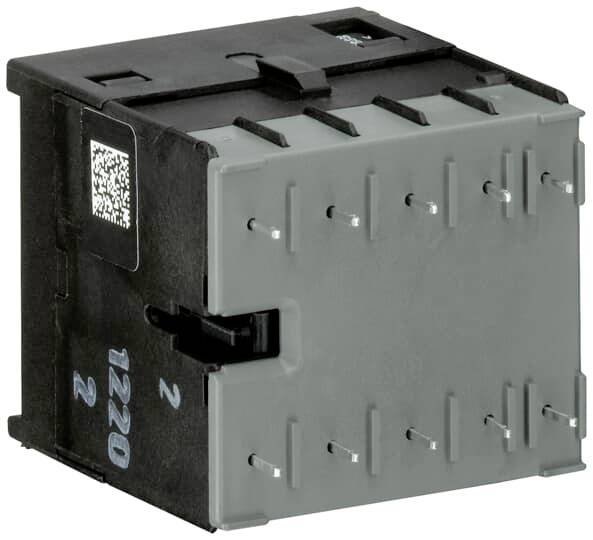

ABB BC7-30-10-P-1.4-81 Mini contactor 4 makers 5.5 kW + auxiliary contact 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
Power
5.5 kW
Connection
Solder pins
Type
BC7-30-10-P-1.4-81
Contact type
4 makers
Datasheet (PDF)
Technical specifications
- Product type
Mini contactor
- Type
BC7-30-10-P-1.4-81
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
- Permanent current (max.)
12 A
5.5 kW
- Features
+ auxiliary contact
- Connection
Solder pins
- Content
1 pc(s)
47.5
45.2 mm
47.7 mm
FALSE
5.5 kW
3
0
1
0
11 A
20 A
24-24 V
24-24 V
24-24 V
PCB connection
220-690 V
220-690 V
DC
2.237
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111886 ABB BC7-30-10-P-1.4-81 Mini contactor 4 makers 5.5 kW + auxiliary contact 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111886 ABB BC7-30-10-P-1.4-81 Mini contactor 4 makers 5.5 kW + auxiliary contact 1 pc(s)
Description
Small contactors B/BC 6 and B/BC 7 from 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. As a result and as a result of various contact and coil variants, a very broad range of application possibilities is offered also under unfavorable space conditions. With their AC or DC control, they switch power circuits with motors, slightly inductive or non-inductive loads. Expandable accessories are fire extinguishers and 2-pin auxiliary switches which can be attached on either side or front.
