ABB BH-6T E-Klips Trägerschraubklammer Rail bracket 40 mm Spring steel 7TCA084220R0070 25 pc(s) (L x W) 40 mm x 22 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Support screw clamp, horizontal up to 18 mm, solid, with M6
- Mounting without drilling: Fast and reliable attachment to steel structures without drilling or welding.
- Tool-free installation: Enables simple mounting with standard tools.
- High load capacity: Vertical load limit of up to 60 kg.

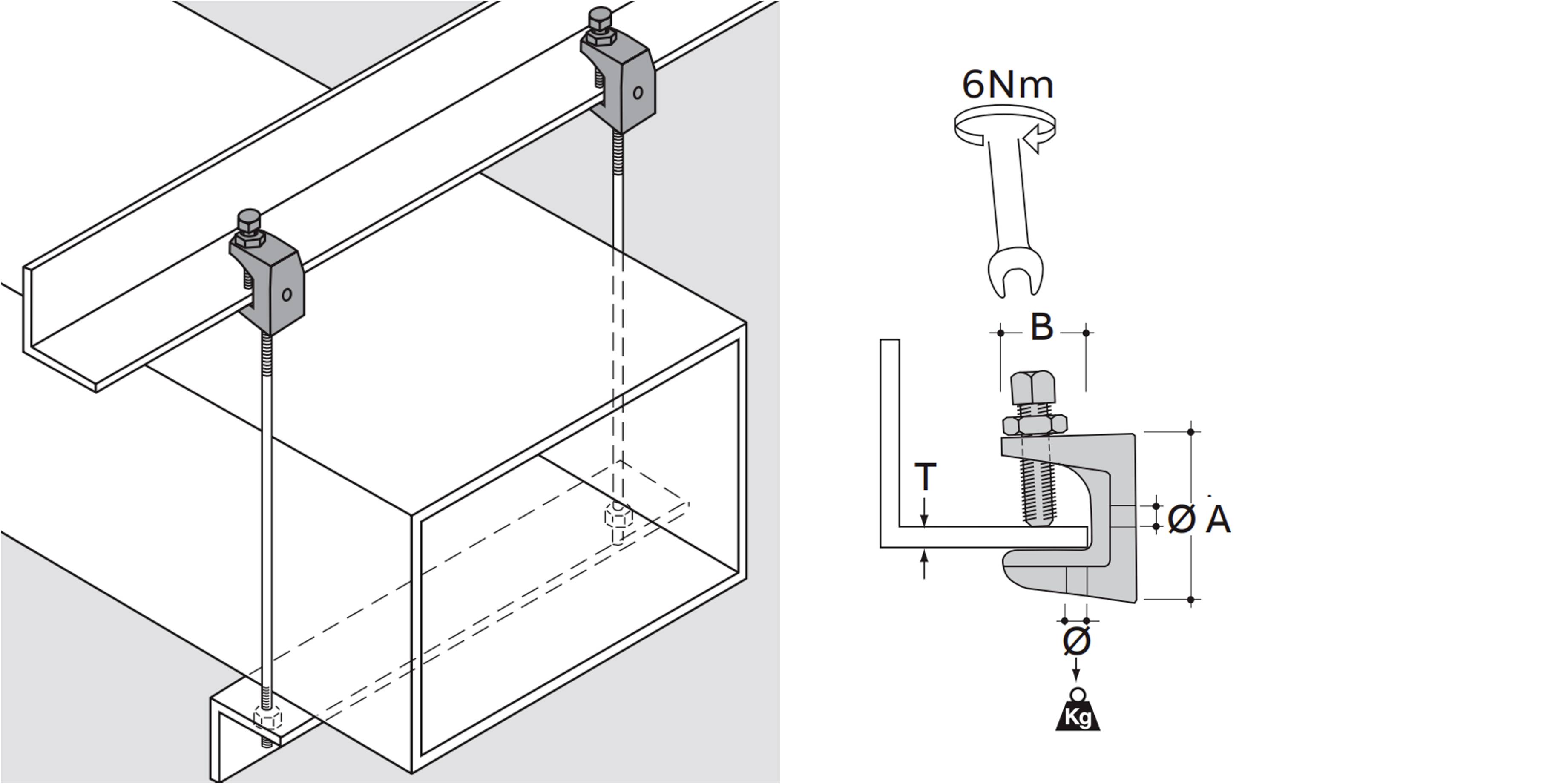

- Specified dimensions: Suitable for flange thickness (T) up to max. 18 mm. Threaded connection (Ø) for M6 threaded rods.
- Corrosion protection: Class F1 surface (galvanically galvanized), Ideal for indoor areas.
Technical specifications
- Galvanised with a chromate coating (F1)
- Manufactured in accordance with DIN EN 10132-4
- Clamping range (T): For carrier thicknesses up to 18 mm
- Tightening torque: Recommended torque of 6 Nm for the clamping screw
- Load capacity: Maximum vertical static load limit of 60 kg
- Product type
Rail bracket
- Dim
(L x W) 40 mm x 22 mm
- Material
Spring steel
- Content
25 pc(s)
- Shape
BH-6T
- Thread size
M6
- Material properties
tempered
corrosion-protected
- Width
22 mm
- Length
40 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3744176 ABB BH-6T E-Klips Trägerschraubklammer Rail bracket 40 mm Spring steel 7TCA084220R0070 25 pc(s) (L x W) 40 mm x 22 mm
User & Safety Instructions
User & Safety Instructions 3744176 ABB BH-6T E-Klips Trägerschraubklammer Rail bracket 40 mm Spring steel 7TCA084220R0070 25 pc(s) (L x W) 40 mm x 22 mm
Description
E-Clips Bra-6T: The efficient solution for your threaded rod attachment Optimise your installation processes with the E-Clips carrier clamp from ABB. For over 40 years this system stands for speed and reliability in professional use. The carrier clamp BH-6T enables a stable fixing of M6 threaded rods on steel carriers with a flange thickness of up to 18 mm - and this completely without time-consuming drilling or additional screws. Thanks to the high-quality galvanic galvanization (surface F1) the clamp offers a solid protection in non-corrosive inner areas. With a tested vertical load capacity of 60 kg, you can rely on the highest quality and safety. Save valuable working time by simple handling and rely on a proven mounting system that perfectly combines efficiency and stability.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 25 items
