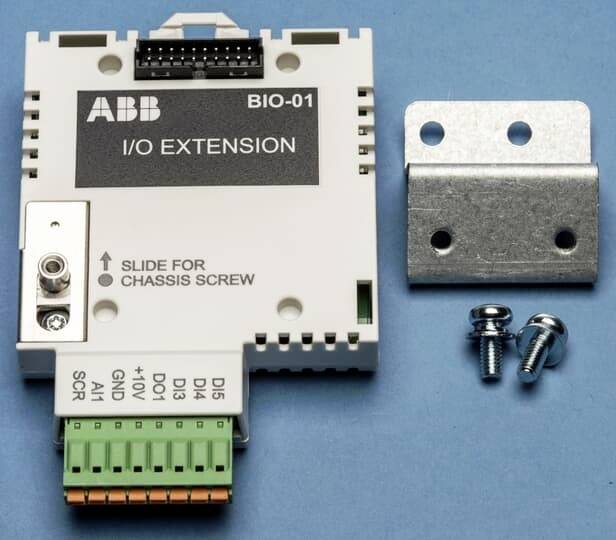

ABB BIO-01 Interface board
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Interface board
- Manufacturer part #
3AXD50000191635
- Type
BIO-01
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3103701 ABB BIO-01 Interface board
User & Safety Instructions
User & Safety Instructions 3103701 ABB BIO-01 Interface board
Description
The BIO-01 option module for the front panel (option +L515) is an I/O expansion module for the fieldbus. The BIO-01 option module is switched between the frequency converter
And the fieldbus module. The BIO-01 has three additional digital inputs (DI3, DI4 and DI5), one analog input (AI1) and one digital output (DO1),
Which is referred to as DIO1 in the firmware (it only works in the initial mode). You
Can use DI4 and DI5 as frequency inputs and DO1 as frequency output.
The terminal block BIO-01 is removable and has spring clamp terminals for attaching the signal lines.
This text is machine translated.
And the fieldbus module. The BIO-01 has three additional digital inputs (DI3, DI4 and DI5), one analog input (AI1) and one digital output (DO1),
Which is referred to as DIO1 in the firmware (it only works in the initial mode). You
Can use DI4 and DI5 as frequency inputs and DO1 as frequency output.
The terminal block BIO-01 is removable and has spring clamp terminals for attaching the signal lines.
This text is machine translated.
