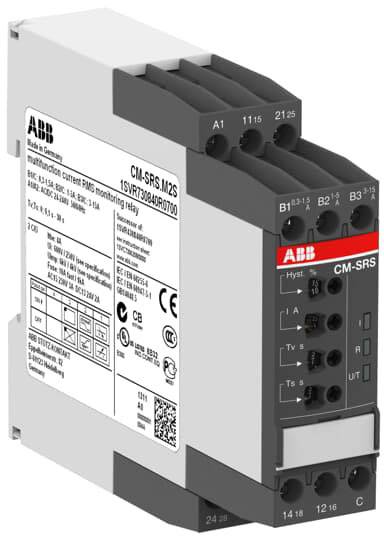

ABB CM-SRS.M2S CM-SRS.M2S CURRENT MONITORING RELAY 2WE,B-C=0.3-15A RMS, 24-240VAC/DC
EAN:
Part number:
Item no:
Dim
(L x W x H) 103.7 x 22.5 x 85.6 mm
Type
CM-SRS.M2S
Connection
Screw terminal
Width
22.5 mm
Length
103.7 mm
Datasheet (PDF)
Technical specifications
- Dim
(L x W x H) 103.7 x 22.5 x 85.6 mm
- Type
CM-SRS.M2S
- Connection
Screw terminal
- Width
22.5 mm
- Length
103.7 mm
- Supply voltage
24 V
- Height
85.6 mm
22.5
78 mm
103 mm
FALSE
Screw connection
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329214 ABB CM-SRS.M2S CM-SRS.M2S CURRENT MONITORING RELAY 2WE,B-C=0.3-15A RMS, 24-240VAC/DC
User & Safety Instructions
User & Safety Instructions 2329214 ABB CM-SRS.M2S CM-SRS.M2S CURRENT MONITORING RELAY 2WE,B-C=0.3-15A RMS, 24-240VAC/DC
Description
THE current monitoring relays of THE CM series protect single-phase networks (DC or AC) from over and under currents between 3 mA and 15 A. The devices with the maximum measuring range of 1 A are available in two different connection versions. You can choose between the proven screw connection technology (double-chamber box terminals) and the tool-free Easy Connect connection technology (push-in terminals). Devices with a maximum measuring range of 15 A are available with screw connection technology.
