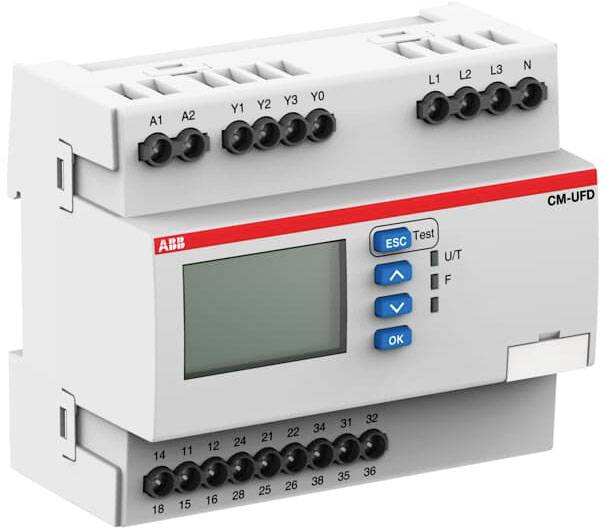

ABB CM-UFD.M31 1SVR560730R3401 Monitoring relay No. of relay outputs: 3
EAN:
Part number:
Item no:
Product type
Monitoring relay
No. of relay outputs
3
Type
CM-UFD.M31
Dim
(W x H) 108 mm x 90 mm
Weight
304 g
Datasheet (PDF)
Technical specifications
- Type
CM-UFD.M31
- Product type
Monitoring relay
- No. of relay outputs
3
- Dim
(W x H) 108 mm x 90 mm
- Weight
304 g
- Width
108 mm
- Height
90 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324789 ABB CM-UFD.M31 1SVR560730R3401 Monitoring relay No. of relay outputs: 3
User & Safety Instructions
User & Safety Instructions 2324789 ABB CM-UFD.M31 1SVR560730R3401 Monitoring relay No. of relay outputs: 3
Description
THE LINE supply monitoring relay CM-UFD.M31 monitors voltage and frequency in single and three-phase networks. In conjunction with inverters with integrated island grid detection, it meets the requirements for NA protection according to VDE-AR-N 4105:2018-11 (generating systems on the low-voltage grid) or VDE-AR-N 4110:2018-11 ((generation systems on the medium-voltage grid). For use in old systems, the setting values can also be selected according to VDE-AR-N 4105:2011, or BDEW (infeed on medium-voltage network). The last 99 shutdown causes and their respective time are stored in an alarm memory. The connected coupling switches, vector jump detection and ROCOF frequency gradient monitoring are also monitored.
