Name: ABB CMS-100DR Current measuring system sensor CMS-100DR 80A, 18mm for DIN rail mounting
Brand: ABB
SKU: 2321828

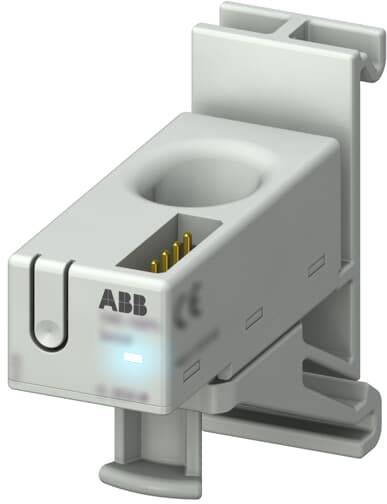

An electrical connection module with multiple pins and a glowing blue light, mounted on a bracket.

Type

CMS-100DR

Connection

Ribbon

Input current (max.)

Width

18 mm

UKCA

yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: CMS-100DR

Connection: Ribbon

Input current (max.): 80

Width: 18 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2321828 ABB CMS-100DR Current measuring system sensor CMS-100DR 80A, 18mm for DIN rail mounting

User & Safety Instructions

User & Safety Instructions 2321828 ABB CMS-100DR Current measuring system sensor CMS-100DR 80A, 18mm for DIN rail mounting

Description

CMS-100DR sensors for use with CMS-600 and CMS-770 to 80A current measuring systems. The sensors with an installation width of 18mm for universally applicable DIN rail mounting ensure exact and effective measurement. The CMS sensors are also ideal for retrofitting existing installations due to their unique compactness. The sensors measure TRMS, AC and DC currents (current, min/max and hold values) and transmit these values to the control unit via a 4-pin ribbon cable. They comply with DIN EN 61010-1.
