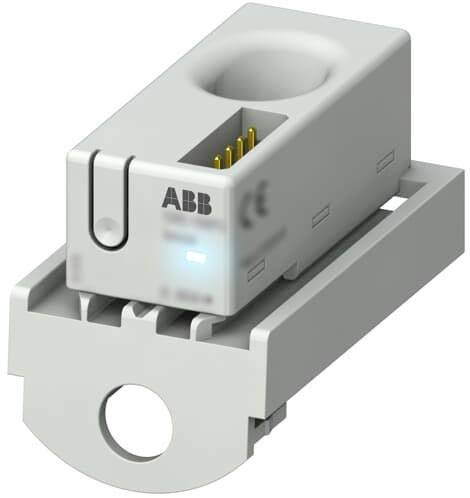

ABB CMS-100S8 Current measuring system sensor CMS-100S8 80A, 18mm for S800 installation devices
EAN:
Part number:
Item no:
Type
CMS-100S8
Connection
Ribbon
Input current (max.)
0.1
Width
18 mm
UKCA
yes
Datasheet (PDF)
Technical specifications
- Type
CMS-100S8
- Connection
Ribbon
- Input current (max.)
0.1
- Width
18 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2320843 ABB CMS-100S8 Current measuring system sensor CMS-100S8 80A, 18mm for S800 installation devices
User & Safety Instructions
User & Safety Instructions 2320843 ABB CMS-100S8 Current measuring system sensor CMS-100S8 80A, 18mm for S800 installation devices
Description
CMS-100S8 sensors for use with CMS-600 and CMS-770 to 80A current measuring systems. The sensors with a mounting width of 18mm for S800 installation devices with double-level terminals ensure accurate and effective measurement. The CMS sensors are also ideal for retrofitting existing installations due to their unique compactness. The sensors measure TRMS, AC and DC currents (current, min/max and hold values) and transmit these values to the control unit via a 4-pin ribbon cable. They comply with DIN EN 61010-1.
