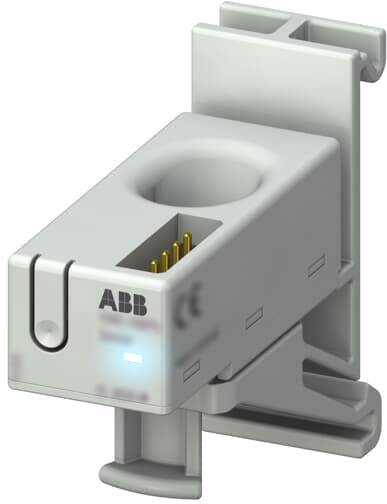

ABB CMS-102DR Current measuring system sensor CMS-102DR 20A, 18mm for DIN rail mounting
EAN:
Part number:
Item no:
Type
CMS-102DR
Connection
Ribbon
Input current (max.)
20
Width
18 mm
UKCA
yes
Datasheet (PDF)
Technical specifications
- Type
CMS-102DR
- Connection
Ribbon
- Input current (max.)
20
- Width
18 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319217 ABB CMS-102DR Current measuring system sensor CMS-102DR 20A, 18mm for DIN rail mounting
User & Safety Instructions
User & Safety Instructions 2319217 ABB CMS-102DR Current measuring system sensor CMS-102DR 20A, 18mm for DIN rail mounting
Description
CMS-102DR sensors for use with CMS-600 and CMS-770 to 20A current measuring systems. The sensors with an installation width of 18mm for universally applicable DIN rail mounting ensure exact and effective measurement. The CMS sensors are also ideal for retrofitting existing installations due to their unique compactness. The sensors measure TRMS, AC and DC currents (current, min/max and hold values) and transmit these values to the control unit via a 4-pin ribbon cable. They comply with DIN EN 61010-1.
