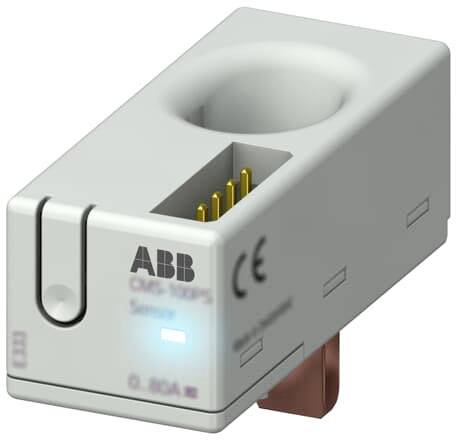

ABB CMS-102PS Current measuring system sensor CMS-102PS 20A, 18mm for each M compact and SMISSLINE
EAN:
Part number:
Item no:
Type
CMS-102PS
Connection
Ribbon
Input current (max.)
20
Width
18 mm
Model
Through-feed current converter
Datasheet (PDF)
Technical specifications
- Type
CMS-102PS
- Connection
Ribbon
- Input current (max.)
20
- Width
18 mm
Through-feed current converter
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2322301 ABB CMS-102PS Current measuring system sensor CMS-102PS 20A, 18mm for each M compact and SMISSLINE
User & Safety Instructions
User & Safety Instructions 2322301 ABB CMS-102PS Current measuring system sensor CMS-102PS 20A, 18mm for each M compact and SMISSLINE
Description
CMS-102PS sensors for use with CMS-600 and CMS-770 to 20A current measuring systems. The sensors with a mounting width of 18mm for the pro M compact System and for SMISSLINE installation devices with double-level terminals ensure accurate and effective measurement. The CMS sensors are also ideal for retrofitting existing installations due to their unique compactness. The sensors measure TRMS, AC and DC currents (current, min/max and hold values) and transmit these values to the control unit via a 4-pin ribbon cable. They comply with DIN EN 61010-1.
