Name: ABB CMS-200S8 Current measuring system sensor CMS-200S8 160A, 25mm for S800 installation devices
Brand: ABB
SKU: 2323322

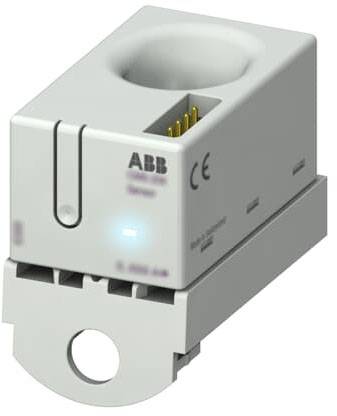

A rectangular, grey device with a round slot on top and a blue illumination point on the front.

Type

CMS-200S8

Connection

Ribbon

Input current (max.)

Width

25 mm

UKCA

yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: CMS-200S8

Connection: Ribbon

Input current (max.): 80

Width: 25 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2323322 ABB CMS-200S8 Current measuring system sensor CMS-200S8 160A, 25mm for S800 installation devices

User & Safety Instructions

User & Safety Instructions 2323322 ABB CMS-200S8 Current measuring system sensor CMS-200S8 160A, 25mm for S800 installation devices

Description

CMS-200S8 sensors for use with CMS-600 and CMS-770 to 160A current measuring systems. The sensors with a mounting width of 25mm for S800 installation devices with double-level terminals ensure accurate and effective measurement. The CMS sensors are also ideal for retrofitting existing installations due to their unique compactness. The sensors measure TRMS, AC and DC currents (current, min/max and hold values) and transmit these values to the control unit via a 4-pin ribbon cable. They comply with DIN EN 61010-1.
